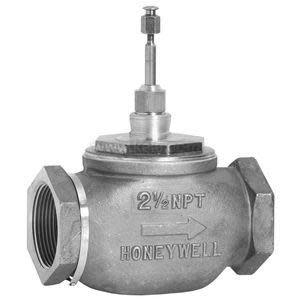

V5011F1113/U | Honeywell | Control Valves

Size: 1/2" to 2" FNPT

Cv Range: 0.73 to 46.8

Stroke: 3/4"

Body Pattern: Two-way (stem up to open), three-way mixing (stem up to open B-AB)

Flow Characteristic:

Two-way V5011N1xxx: equal percentage;

Two-way V5011N2xxx: linear;

Three-way: ports A-AB equal percentage, ports B-AB linear:

Rangeability: 50:1 per VDI/VDE 2173

Leakage Rating: ANSI Class III, 0.05% of Cv

Life Expectancy: 250,000 full cycles at maximum rated temperature

Maximum Close off Pressure: Actuator dependant, see Selection Chart; maximum differential pressure for quiet service 20 psid

Pressure Drop: Maximum water differential pressure for quiet service 20 psid (138 kPa).

Maximum Pressure Rating:

Water: 217 psi (1497 kPa) from 36° to 248°F (2° to 120°C), 185 psi (1277 kPa) from 248° to 337°F (120° to 169°C);

Steam: 100 psi (690 kPa) at 337°F (169°C), using stainless trim valve (V5011N2xxx):

Pressure Rating: ANSI 150

Materials Of Construction: Red brass body, stainless steel stem, metal-to-metal brass/stainless plug and seat, spring-loaded carbon-fiber reinforced Teflon® V-ring packing

Media Compatibility: Hot or chilled water, <50% glycol, steam (use V5011N2xxx for steam above 15 psig (103 kPa) to 100 psig (690 kPa))

Media Temperature Range:

Brass trim: 36° to 248°F (2° to 120°C), 15 psig (103 kPa) steam;

Stainless trim: 36° to 340°F (2° to 177°C), 100 psig (690 kPa) steam:

Action: Stem up to open (2-way), stem up to open B-AB, close A-AB (3-way)

Compatible Actuators: Honeywell MN/MS Series with appropriate Q5020 Linkage, or direct-mount ML Series shown on following pages. For pneumatic actuation see MP953 Series in PNEUMATICS & FITTINGS catalog section.

Actuator Mounting: U-bolt or set screws to fit 1-3/8" valve yoke diameter, 3/4" stroke length

Operating Temperature: Actuator dependant, refer to appropriate ACTUATORS & DAMPERS section or ML Series (on following pages) for specifications

Approvals: Actuator dependant, refer to appropriate ACTUATORS & DAMPERS section or ML Series (on following pages) for specifications
