GA24-562-A | Bray | Control Valves

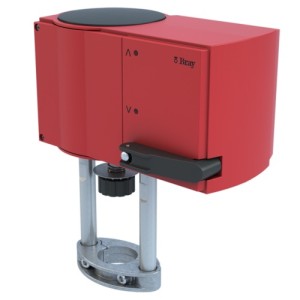

Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 562 lb-in, IP66, Non-Spring Return, with Auxiliary Switch
Brand:Bray
MPN:GA24-562-A
SKU:GA24-562-A
List Price:
$2,137.00
Today's Price:
$1,111.24
Log in for customized pricingproduct specifications
Options
Heater,Manual Override Handwheel
Torque
562 in-lb
Type
Actuator Only
Close Off Pressure
50 psi
Actuator Type
Non-Spring Return
Enclosure Rating
IP66,NEMA 4
Supply Voltage (Nominal)
24 VAC
Actuator Power Type
Electric
With Auxiliary Switch
Yes
Control Signal
Analog
product series specifications
Size Range: Non-Spring Return: to 562 lbs. (2,500 N), Spring Return: to 450 lbs. (2,000 N) Power stroke and Spring stroke
Temperature Range: Max Media Temp: 266°F (130°C); Ambient Temp: 14°F to 131°F (-10° to 55°C)
more information & related documents
Series Description
The GA(S) Series is a direct mount line of linear motor actuators to be used primarily on PIC & globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties. These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return and spring return versions. The GA(S) series is bi-directional, selectable via screw terminals.
Kele Description
PIC AND GLOBE VALVE LINEAR ACTUATOR 24VAC/DC NON-SPRING RETURN, WITH AUXILIARY SWITCH
Manufacturer
Bray
Bray Commercial GAS Series Submittal
