DG5-3-250/GASRE24-450-A | Bray | Control Valves

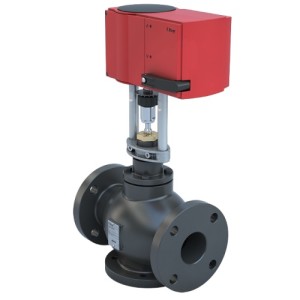

Flanged Globe Valve, 3way, Cast Iron Body, Bronze trim, 5 inch CV 250, Normally Open to C, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 450 lb-in, IP66, spring return -up, shaft Normally Retracted, with Auxiliary Switch
Brand:Bray
MPN:DG5-3-250/GASRE24-450-A
SKU:DG5-3-250/GASRE24-450-A
List Price:
$12,566.00
Today's Price:
$6,534.32
Log in for customized pricingproduct specifications
Options
Manual Override Handwheel
Torque
450 in-lb
Type
Assembly
Close Off Pressure
18 psi
Actuator Type
Spring Return
Medium
Water/Glycol
Housing
Weather Shield
Valve Type
Commercial
Enclosure Rating
IP66,NEMA 4
Cv
250 CV
Supply Voltage (Nominal)
24 VAC
Pattern
3-way
Size
5 in
Actuator Power Type
Electric
Fail Position
Open to C
With Auxiliary Switch
Yes
Control Signal
Floating,Analog,Two Position
product series features
- Features and Benefits - Globe Valve
- Rangeability >100:1
- Cartridge Packing
- 2-Way and 3-Way bodies from 2-1/2" to 6"
- Stainless Steel Trim Option
- Features and Benefits - GA(S) Series Actuator
- Multiple control inputs for both spring return and non spring return models.
- GA(S) Series automatically adapts to valve stroke
- GA(S) Series automatically connects spindle after application of control voltage
- Spring Return Models
- Features and Benefits - VAL Series Actuator
- High Output Force
- Direct Mount to Bray DG Series Globe Valves
- Spring Return Operation
- User-Selectable Input Signals
- Visual and Electronic Position Indication
more information & related documents
Series Description
DG Series Globe Valves provide stable and accurate control of both water, 50/50 water Glycol solutions and steam heat exchangers on fan coil units, VAV reheat coils, and air handling units up to 900 GPM. These globe valves feature rangability of greater than 100:1 to provide precise control. All DG series globe valves feature a cartridge style packing, which is easily replaceable while the valve is in line. Constant plug guiding and precision-machined metal to metal seating assures ANSI Class IV shutoff (.01%) which provides low leakage and energy conservation.
Kele Description
5IN,FLG,3WAY,CI,BRONZE TRIM,CV 250,NO TO C,PICV 24VAC/DC,SR-UP,AUX SW
Manufacturer
Bray
Bray Commercial DG Series Technical Brochure
