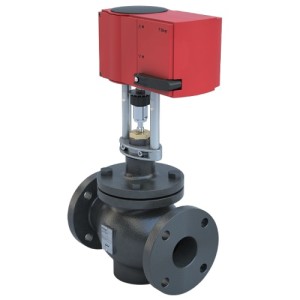

DG5-2-250C/GA24-562 | Bray | Control Valves
Flanged Globe Valve, 2way, Cast Iron Body, Bronze trim, 5 inch CV 250, Normally Closed, Normally Closed, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 562 lb-in, IP66, Non-Spring Return
Brand:Bray
MPN:DG5-2-250C/GA24-562
SKU:DG5-2-250C/GA24-562
List Price:
$6,854.00
Today's Price:
$3,564.08
Log in for customized pricingproduct specifications
Options
Enclosed Terminal Strip,Manual Override Handwheel
Torque
562 in-lb
Type
Assembly
Close Off Pressure
24 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol
Valve Type
Commercial
Cv
250 CV
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
5 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Floating,Analog,Two Position
product series features
- Features and Benefits - Globe Valve
- *Superior Control Accuracy
- *Easily replaceable while valve is in line.
- *Covers all applications from fan coil units to air handling units
- *Applicable to steam inlet pressure up to 50 PSI
- Features and Benefits - GA(S) Series Actuator
- *Meets the requirements of virtually any heat exchanger control application
- *Built-in intelligence matches the actuator to the valve stroke.
- *Easy assembly with valve.
- *Available "fail up/retracte" and "fail down/extended"
- Features and Benefits - VAL Series Actuator
- *Provides high close-off pressure ratings
- *Eases installation and minimizes space requirements
- *Returns valve to the open position upon loss of power
- *Accepts current or voltage inputs
- *Provides position feedback and provides for remote monitoring
more information & related documents
Series Description
Bray DG Series Globe Valves provide stable and accurate control of both water, 50/50 water Glycol solutions and steam heat exchangers on fan coil units, VAV reheat coils, and air handling units up to 900 GPM. These globe valves feature rangability of greater than 100:1 to provide precise control. Two way standard trim valves provide an equal percentage flow characteristic for use on hot water and chilled water. Two way stainless trim valves - recommended for steam applications, and 3-way mixing valves provide a linear flow characteristic. All DG series globe valves feature a cartridge style packing, which is easily replaceable while the valve is in line. Constant plug guiding and precision-machined metal to metal seating assures ANSI Class IV shutoff (.01%) which provides low leakage and energy conservation.
Kele Description
5IN,FLG,2WAY,CI,BRONZE TRIM,CV 250,NC,NC,PICV 24VAC/DC,NSR
Manufacturer
Bray
