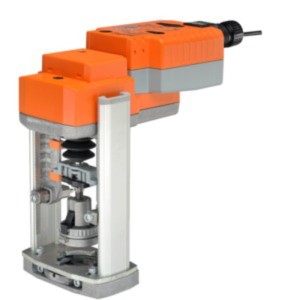

UGVLSVKX24SR | Belimo | Control Valves
Globe Valve, Universal Valve Linkage with LV and SV Series Actuators, 1/2 in - 2 in Valves, Electric Actuator,24 V, Spring Return, Modulating, 2-10 VDC 340 lbf Rated Force, .6 in - 3/4 in Stroke, includes 3 ft of 18 GA Appliance Cable with 1/2 in NPT Conduit Connection
Brand:Belimo
MPN:UGVLSVKX24SR
SKU:UGVLSVKX24SR
List Price:
$1,645.00
Today's Price:
$855.40
Log in for customized pricingproduct specifications
Power Supply
24 VAC,24 VDC
Torque
337 lbf
Type
Actuator Only
Housing Material
Aluminum Die Cast and Plastic Casing
Actuator Type
Electric
Humidity
5 to 95% RH non-condensing
Manual Override
4mm Hex Crank (Shipped with Actuator)
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA
Position Indication
stroke indicator on bracket
Linkage Series
UGVL
Quality Standard
ISO 9001
Power Supply Type
24V
Servicing
maintenance free
Power Consumption Running
3 W
Power Consumption Holding
2 W
Running Time
95 seconds
Unit of Measure
PC
Service
chilled or hot water and steam
Valve Company
Siemens, Landis, Powers, JCI, Honeywell, Robertshaw
Transformer Sizing
7 VA (class 2 power source)
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Enclosure Rating
NEMA 2,IP54
Actuator Series
SVKB(X)
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Application Type
Retrofit
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Electrical Connection
3 ft, 18 GA plenum rated cable with 1/2 in conduit connector protected NEMA 2 (IP54)
Fitting Valve
UGVL
Fitting Actuator
SVKX24-SR
Fail-Safe
Spring Return
Feedback Output U
2 to 10 VDC
Supply Voltage (Nominal)
24 VAC
Control Signal
Analog
product series specifications
Connections: 3' (0.9 m) 18GA plenum rated cable
Life Expectancy: 100,000+ cycles
Materials of Construction: Plastic, aluminum, steel
Color: Orange actuator
Fail Safe: 35 seconds (not on all models), 35 sec
Supply Voltage: 24 VAC/VDC, 120 VAC, 230 VAC
Control Signal: On-Off, floating or proportional (MFT functionality optional)
Noise (Actuator Type):
SV Series: 55 dB
LV Series: 45 dB
EV/RV Series: 65 dB
Conduit Connection: 1/2" conduit fitting appliance cable
Feedback: Dependent on model
Auxiliary Switch: Add-on, @SPDT, 3A @ 250V,
Force (Actuator Type):
LV Series: 112 foot lbs (lbf)
SV Series: 337 foot lbs (lbf)
AVK Series: 450 foot lbs (lbf)
EVB Series: 562 foot lbs (lbf)
RVB Series: 1011 foot lbs (lbf)
Compatible Actuators: Actuator included in part number
Actuator Mounting: Included in part number
Drive Time: 90 sec (variable on MFT)
Operating Temperature: -22° to 122°F (-30° to 50°C)
Operating Humidity: 5-95% non-condensing
Enclosure Rating: NEMA 2 / IP54, UL enclosure type 2
Approvals: cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC
Warranty: 5 years
product series features
- Increased force ranges for higher close-off pressures
- Field selectable fail-safe actuator positions
- Lower power consumption during operation
- Cast Aluminum linkage
- Locking coupler feature to prevent slipping
- Centering device on linkage to assure proper alignment
- Manual override capability
more information & related documents
Series Description
The Belimo UGVL, SGVL, WGVL, AND FGVL Series New Generation Linear Globe Valve Actuators and Retrofit Linkages offer greater power and flexibility. Engineered to suit a broad range of HVAC applications, both the New Generation Actuators and Retrofit Linkages are highly adaptable making selection, installation, and long-term service worry-free. New force ranges is from 112 lbf [500N] to 1011 lbf [4500N] and there is a broader travel range from 0.6 in. (15 mm) to 2 in. (50 mm). With a universal format, these retrofit linkages and actuators will fit most globe valves on the market today.
Kele Description
GLOBE VLV, VLV LINKAGE WITH LV AND SV SERIES ACTUATORS, 1/2 IN - 2 IN VLV, 24V, SR, MOD, 2-10VDC
Manufacturer
Belimo
Universal Linkage Product Brochure-2015 updated
