UGVL-LVKX24-SR

UGVL+LVKX24-SR | Belimo | Control Valves

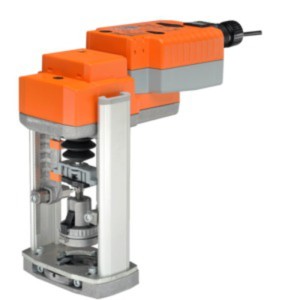

UGVL w/ Electronic Fail-Safe, 112 lbf, 24V, Modulating

Manufacturer:Belimo

MPN:UGVL+LVKX24-SR

SKU:UGVLLVKX24SR

List Price:

1,244.00

Today's Price:

696.64



USD
Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product specifications

Actuator Series

LVKB(X)

Agency Listings

cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC

Ambient Temperature Range

-22°F to 122°F [-30°C to 50°C]

Application Type

Retrofit

Control

Modulating

Control Type

Modulating

Description

UGVL w/ Electronic Fail-Safe, 112 lbf, 24V, Modulating

Direction of Rotation (Fail-Safe)

reversible with switch

Direction of Rotation (Motor)

reversible with switch

Electrical Connection

3 ft, 18 GA plenum rated cable with 1/2" conduit connector protected NEMA 2 (IP54)

Fail-Safe

Electronic Fail-Safe

Feedback Output U

2 to 10 VDC

Fitting Actuator

LVKX24-SR

Fitting Valve

UGVL

Housing

NEMA 2, IP54, UL enclosure type 2

Housing Material

Aluminum die cast and plastic casing

Humidity

5 to 95% RH non-condensing

Input Impedance

100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA

Linkage Series

UGVL

Manual Override

4 mm hex crank (shipped w/actuator)

Media Temperature Range (Water)

Please Refer to Manufacturer's Valve Specifications

Noise Level (Motor)

<55 dB (A)

Position Indication

stroke indicator on bracket

Power Consumption Holding

1.5 W

Power Consumption Running

2.5 W

Power Supply

24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%

Power Supply Type

24V

Product family

Retrofit

Quality Standard

ISO 9001

Running Time

95 seconds

Running Time (Fail-Safe)

35 sec

Running Time (Motor)

90 sec (default), Optional (90 or 150 sec)

Service

chilled or hot water and steam

Servicing

maintenance free

Storage Temperature Range

-40°F to 176°F [-40°C to 80°C]

Transformer Sizing

6 VA (class 2 power source)

Unit of Measure

PC

Valve Company

Siemens\Landis\Powers\JCI\Honeywell\Robertshaw

Valve Type

Globe Valve

product family features

  • Increased force ranges for higher close-off pressures
  • Field selectable fail-safe actuator positions
  • Lower power consumption during operation
  • Cast Aluminum linkage
  • Locking coupler feature to prevent slipping
  • Centering device on linkage to assure proper alignment
  • Manual override capability

more information & related documents

Family Description

The Belimo UGVL, SGVL, WGVL, AND FGVL Series New Generation Linear Globe Valve Actuators and Retrofit Linkages offer greater power and flexibility. Engineered to suit a broad range of HVAC applications, both the New Generation Actuators and Retrofit Linkages are highly adaptable making selection, installation, and long-term service worry-free. New force ranges is from 112 lbf [500N] to 1011 lbf [4500N] and there is a broader travel range from 0.6″ (15 mm) to 2″ (50 mm). With a universal format, these retrofit linkages and actuators will fit most globe valves on the market today.

Kele Description

UGVL/W/ELEC FAIL-SAFE/112 LBF/2-10 VDC/24V
