G240B-N+LVKB24-MFT | Belimo | Control Valves

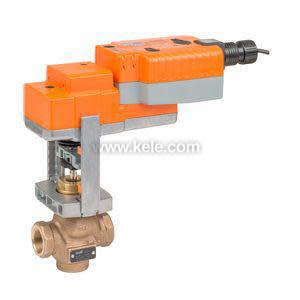

Globe Valve (H), 1 1/2, 2-way, ANSI Class 250, Cv 28
Brand:Belimo
MPN:G240B-N+LVKB24-MFT
SKU:G240B-N+LVKB24-MFT
List Price:
$1,988.00
Today's Price:
$1,033.76
product specifications
Connection
NPT
Cv
28 CV
Fail-Safe
Spring Return
Supply Voltage
24 VAC
Type
Assembly
Pattern
2-Way
Trim Material
Bronze
Size
1-1/2 in
Actuator Type
Electric
product series specifications
- Actuator Control Type:
- Floating point, On-Off, 2-10 VDC multi-function technology (MFT)
- Actuator Manual Override:
- All models except LF
- Actuator Electrical Connection:
- 3' (1mm) cable with 1/2" conduit fitting standard
- Connections:
- NPT female ends
- Flow Characteristic:
- :
- G2 Equal percentage
- :
- G2S, G3, G3D Linear
- Maximum Pressure Rating:
- 250 psi
- Media Compatibility:
- Chilled or Hot Water, 60% Glycol, Steam (G2, G2S)
- Pipe Size Range:
- 1/2‚Ä=, 3/4‚Ä=, 1‚Ä=, 1-1/4‚Ä=, 1-1/2‚Ä=, 2‚Ä=
- Minimum Closeoff 85 psi:
- Maximum Differential Pressure:
- :
- Water 35 psi (241 kPa)
- :
- Steam 20 psi (138 kPa) to 35 psi (241 kPa)
- Maximum Inlet Pressure:
- :
- Steam 35 psi (241 kPa)
- Warranty:
- 5 years
- Weight:
- Varies per valve
product series features
- Full line of spring and non-spring actuators for all applications
- 2-position, floating and modulating control signals for all control sequences
- Self-adjusting stroke
- Visual sliding stroke indicators; position indicators adjusted automatically
- Assembly can be mounted with valve stem horizontal to the pipe
- Self locking valve coupling
- Â
- BENEFITS
- Utilizes full control signal for maximum resolution
- Speeds installation and system check
- Piping flexibility
- Proper valve-actuator connection is ensured
more information & related documents
Series Description
The Belimo G2 Series 2-way and G3 Series 3-way threaded globe valves can be used for two-position, floating or proportional control of HVAC hot water, chilled water or steam. The valves come assembled with Belimo electric actuators with spring return or non-spring return operation and are ideal for controlling unit ventilators, air handling units and a wide variety of HVAC heating and cooling systems.
Kele Description
CVLV-G/1.5IN/2W/28CV/ EFS/ 24V/MFT
Manufacturer
Belimo
