MKL2-N040/DS24-180-D | Bray | Control Valves

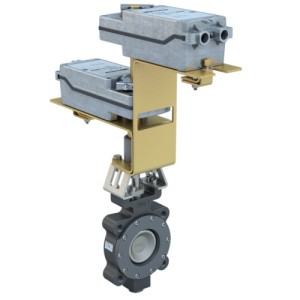

4 inch Lugged Butterfly Valve High Performance, ANSI Class 150, Carbon Steel Body, Disc 316 Stainless Steel, Seat RPTFE, CV 375, Double Offset Stem/Disc Design, Bubble tight leakage, Normally Open, Damper & Valve actuator, 24 VAC/DC, 177 lb-in, on/off, Spring Return, Dual, Nema 2, IP54

Brand:Bray

MPN:MKL2-N040/DS24-180-D

SKU:MKL2-N040/DS24-180-D

List Price:

$-.--

Today's Price:

$-.--

product specifications

Options

Dual Mounted,Manual Override Handwheel

Type

Assembly

Close Off Pressure

285 psi

Actuator Type

Spring Return

Medium

Water/Glycol/Steam

Housing

Weather Shield

Valve Type

High Performance

375 CV

Supply Voltage (Nominal)

24 VAC,24 VDC

Pattern

2-way

Size

4 in

Actuator Power Type

Electric

Fail Position

Open

Control Signal

Two Position

product series specifications

Size Range: 2 1/2" to 20" (65mm – 500mm)

End Connections: 2-Way for ANSI 150 and ANSI 300 Flanges, 3-Way for ANSI 150 flanges only, Lug

Temperature Range: -40° to 500°F (-40° to 260°C)

Body Material: Carbon Steel

Disc Material: 316 Stainless Steel

Configurations: 2-Way, 3-Way

product series features

Double Offset Stem/Disc Design
Blow-Out Proof Stem
Energized RPTFE Seat
Pressure Assisted, but not Pressure Dependent Seat Design
Adjustable PTFE Packing
Dead End Rating Equal to Nominal Pressure Rating

more information & related documents

Series Description

The Bray McCannalok MK Series high performance  butterfly valves set the quality and design standard by which all other high performance valves are measured. The MK Series is ideally suited to high  pressure, high temperature, and high cycle HVAC  applications as well as mission critical HVAC applications. Available in ANSI Class 150 (Series 41) ratings, both 2- way and 3-way, and ANSI Class 300 (Series 43) ratings  in 2-way configurations, Bray’s MK Series valves are  provided with a wide variety of direct mount Bray  electric and pneumatic actuators and accessories. All  valves are tested for bubble tight close-off to API 598  standards at maximum rated differential pressure.

Kele Description

4IN,LUG HIGH PERF,ANSI 150,CS BDY,CV 375,NO,24VAC/DC,177LB-IN,ON/OFF,SR,DUAL

Manufacturer

Bray
