MKL2-C143/70-1300H | Bray | Control Valves

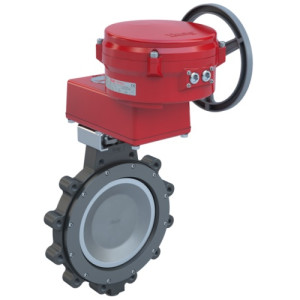

14 inch Lugged Butterfly Valve High Performance, ANSI Class 300, Carbon Steel Body, Disc 316 Stainless Steel, Seat RPTFE, CV 4100, Double Offset Stem/Disc Design, Bubble tight leakage, Normally Closed, S70 Direct mounts to Bray Butterfly Valves, quarter turn electric actuator, 120 VAC, Two position, 13000 lb-in, NEMA 4, Heater

Brand:Bray

MPN:MKL2-C143/70-1300H

SKU:MKL2-C143/70-1300H

List Price:

$-.--

Today's Price:

$-.--

product specifications

Options

Heater

Torque

13000 in-lb

Type

Assembly

Close Off Pressure

350 psi

Actuator Type

Non-Fail Safe

Medium

Water/Glycol/Steam

Valve Type

High Performance

Enclosure Rating

IP65,IP67,NEMA 4,NEMA 4X

4100 CV

Supply Voltage (Nominal)

120 VAC

Pattern

2-way

Size

14 in

Actuator Power Type

Electric

Fail Position

Last

With Auxiliary Switch

Yes

Control Signal

Two Position

product series specifications

Size Range: 2 1/2" to 20" (65mm – 500mm)

End Connections: 2-Way for ANSI 150 and ANSI 300 Flanges, 3-Way for ANSI 150 flanges only, Lug

Temperature Range: -40° to 500°F (-40° to 260°C)

Body Material: Carbon Steel

Disc Material: 316 Stainless Steel

Configurations: 2-Way, 3-Way

product series features

Double Offset Stem/Disc Design
Blow-Out Proof Stem
Energized RPTFE Seat
Pressure Assisted, but not Pressure Dependent Seat Design
Adjustable PTFE Packing
Dead End Rating Equal to Nominal Pressure Rating

more information & related documents

Series Description

The Bray McCannalok MK Series high performance  butterfly valves set the quality and design standard by which all other high performance valves are measured. The MK Series is ideally suited to high  pressure, high temperature, and high cycle HVAC  applications as well as mission critical HVAC applications. Available in ANSI Class 150 (Series 41) ratings, both 2- way and 3-way, and ANSI Class 300 (Series 43) ratings  in 2-way configurations, Bray’s MK Series valves are  provided with a wide variety of direct mount Bray  electric and pneumatic actuators and accessories. All  valves are tested for bubble tight close-off to API 598  standards at maximum rated differential pressure.

Kele Description

14IN,LUG HIGH PERF,ANSI 300,CS BDY,CV 4100,NC,120 VAC,2 POS,13000LB-IN,NEMA 4,HTR

Manufacturer

Bray
