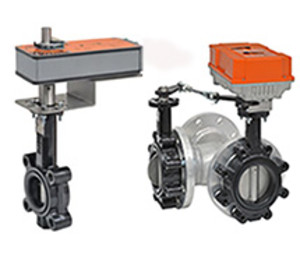

PKRXUP-MFT-T | Belimo | Control Valves

Butterfly Valve, for 2 in - 24 in Valves, Electric,24-240 VAC, Spring Return, MFT/Programmable (2) SPDT Auxiliary Switch, BACnet MS/TP, Modbus RTU, MP-Bus, includes Terminal Connection NEMA 4X

Brand:Belimo

MPN:PKRXUP-MFT-T

SKU:PKRXUP-MFT-T

This product replaces PKRXUPMFTT

List Price:

$6,986.00

Today's Price:

$3,632.72



Lead time of 12 days. Chat with Kele experts now

product specifications

Fail-Safe

Spring Return

Type

Actuator Only

Pattern

2-way

Control Signal

Analog

Actuator Type

Electric

Supply Voltage (Nominal)

240 VAC

product series specifications

Size: 2 thru 20

Cv: 115 thru 27908 (See ordering)

Mounting Flange: ANSI Class 125/150 lug style flanges

Maximum Closeoff Pressure:

Undercut Models (HDU): 50 psid (345 kPa)

Full Disc (HD): 200 psid (1380 kPa)

Pressure Rating: 200 psig (1379 kPa) @ -30° to 275°F

ASME/ANSI Class: 125/150

Materials Of Construction:

Valve Body: Ductile iron ASTM A536 (with epoxy powder finish)

Seat: EPDM

Shaft: 416 stainless steel

Disc: 304 stainless steel

O-ring: EPDM

Bushings: RPTFE

Media Compatibility: Hot or chilled water, up to 60% glycol

Media Temperature: -22° to 250°F (-30° to 120°C)

Supply Voltage: 24 VAC/VDC (Belimo direct-coupled); 24 VAC or 120 VAC (SY Series)

Control Signal: Two-position, floating or proportional 0-10 VDC, 4-20 mA

Actuator Type: Spring Return/Fail Safe (SR), Non-Spring Return (NSR)

Manual Override: All models have manual override

Operating Temperature: -22° to 122°F (-30° to 50°C)

Enclosure Rating: NEMA 2 and NEMA 4 enclosed (Belimo direct-coupled actuators); NEMA 4/4X (SY Series industrial actuators)

Warranty: 2 years

product series features

  • Advanced seat and disc design provide bubble-tight shutoff while maintaining a low seating torque
  • Standard rotary actuators, or industrial grade NEMA 4 actuators for a variety of application requirements
  • Internal valve body five bushing design isolates the valve body from the shaft resulting in better control
  • Standard stainless steel disc and shaft for strength, durability and long-lasting operation

more information & related documents

Series Description

The Belimo F6, F7 Series butterfly valves fulfill the requirements of commercial and industrial HVAC applications requiring positive shutoff for water. Applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control and bypass, and various water distribution and storage systems. The F6 assemblies are two-way and the F7 are three-way flow patterns. Undercut disc assemblies, designated by 'HDU' in the part number have a maximum close-off of 50 psid, and full-cut models, designated by 'HD' part number, have full 200 psid close-off rating. Small size valves are available with economical Belimo rotary actuators and all sizes are available with industrial grade, NEMA 4 actuators, to meet most application requirements. Other sizes, assembly combinations, connection types, and materials of construction are available.

Kele Description

BUTTERFLY VALVE ACTUATOR, FOR 2 IN - 24 IN VALVES, ELECTRIC,24-240VAC, SR, MFT/PROGRAMMABLE

Manufacturer

Belimo
