F765VIC+SY1-110 | Belimo | Control Valves

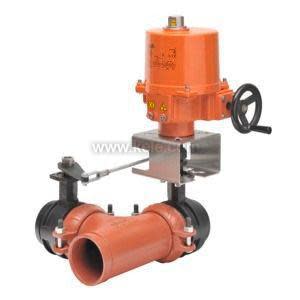

Butterfly Valve (BFV), 2 1/2, 3-way, Cv 260

Brand:Belimo

MPN:F765VIC+SY1-110

SKU:F765-0000000051

List Price:

$6,401.00

Today's Price:

$3,328.52



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Cv

260 CV

Fail-Safe

Non-Spring Return

Supply Voltage

120 VAC

Type

Assembly

Pattern

3-Way

Trim Material

Stainless Steel

Size

2-1/2 in

Control Signal

On/Off, Aux Switch, NEMA 4/4X

Actuator Type

Electric

product series specifications

  • Size: 2 thru 20
  • Cv: 115 thru 27908 (See ordering)
  • Mounting Flange: ANSI Class 125/150 lug style flanges
  • Maximum Closeoff Pressure:
    • Undercut Models (HDU): 50 psid (345 kPa)
    • Full Disc (HD): 200 psid (1380 kPa)
  • Pressure Rating: 200 psig (1379 kPa) @ -30° to 275°
  • ASME/ANSI Class 125/150
  • Materials Of Construction:
    • Valve Body: Ductile iron ASTM A536 (with epoxy powder finish)
    • Seat: EPDM
    • Shaft: 416 stainless steel
    • Disc: 304 stainless steel
    • O-ring: EPDM
    • Bushings: RPTFE
  • Media Compatibility: Hot or chilled water, up to 60% glycol
  • Media Temperature: -22° to 250° (-30° to 120°)
  • Supply Voltage: 24 VAC/VDC (Belimo direct-coupled); 24 VAC or 120 VAC (SY Series)
  • Control Signal: Two-position, floating or proportional 0-10 VDC, 4-20 mA
  • Actuator Type: Spring Return/Fail Safe (SR), Non-Spring Return (NSR)
  • Manual Override: All models have manual override
  • Operating Temperature: -22° to 122° (-30° to 50°)
  • Enclosure Rating: NEMA 2 and NEMA 4 enclosed (Belimo direct-coupled actuators); NEMA 4/4X (SY Series industrial actuators)
  • Warranty: 2 years

product series features

  • Advanced seat and disc design provide bubble-tight shutoff while maintaining a low seating torque
  • Standard rotary actuators, or industrial grade NEMA 4 actuators for a variety of application requirements
  • Internal valve body five bushing design isolates the valve body from the shaft resulting in better control
  • Standard stainless steel disc and shaft for strength, durability and long-lasting operation

more information & related documents

Series Description

The Belimo F6, F7 Series butterfly valves fulfill the requirements of commercial and industrial HVAC applications requiring positive shutoff for water. Applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control and bypass, and various water distribution and storage systems. The F6 assemblies are two-way and the F7 are three-way flow patterns. Undercut disc assemblies, designated by 'HDU' in the part number have a maximum close-off of 50 psid, and full-cut models, designated by 'HD' part number, have full 200 psid close-off rating. Small size valves are available with economical Belimo rotary actuators and all sizes are available with industrial grade, NEMA 4 actuators, to meet most application requirements. Other sizes, assembly combinations, connection types, and materials of construction are available.

Kele Description

BFLY-VLV/2.5IN/3W/260 CV/NSR/120V/ON-OFF/SW/N4XH
