599-01122 | Siemens Industry | Control Valves
1/2"NO,VLV,1.6 CV,BZ,200N, FXUM
Brand:Siemens Industry
MPN:599-01122
SKU:599-01122
product specifications
Type
Valve Only
Connection
NPT
Cv
1.6 CV
Trim Material
Brass
Pattern
2-way
Size
1/2 in
product series specifications
Size: 1/2", 3/4", 1"
Cv Range: 1, 2.5, 4, 4.1, 7
Stroke: 0.1" (2.5 mm)
Body Pattern: 2-way, 3-way diverting
Flow Characteristic: Linear
Leakage Rating: ANSI Class III (0.1% of rated capacity)
Body Rating: ANSI Class 125
Media Temperature Range: 34° to 230°F (1° to 110°C)
Supply Voltage: 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz
Supply VA: Two-position actuators: 9.8 VA; three-position (floating) actuators: 0.8 VA; proportional (0-10 VDC) actuators: 2.5 VA
Signal Input: Two-position, three-position (floating), and 0-10 VDC proportional
Action: Two-way valves are stem-up-to-open; three-way valves are diverting; normal position is determined by choice of actuator
Stroke Time: Two-position actuators: 35 seconds; three-position (floating) actuators: 150 seconds; proportional (0-10 VDC) actuators: 34 seconds
Operating Temperature: 41° to 122°F (5° to 50°C)
Operating Humidity: 0 to 90% RH non-condensing
Enclosure Rating: NEMA 1 (indoor only)
Weight: Two-position actuators: 1.2 lb (0.54 Kg); three-position (floating) actuators: 0.5 lb (0.25 Kg); proportional (0-10 VDC) actuators: 0.5 lb (0.25 Kg)
Approvals: CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL FIle #E220114,
Warranty: 2 years
product series features
- Direct-coupled universal bonnet
- Direct-coupled installation without tools
- Manual override with 3mm hex wrench
- Visual position indication
more information & related documents
Series Description

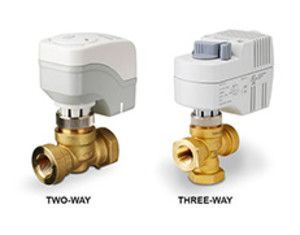

The Siemens 599 Series zone valves work with any SFA/P Series or SSA/P Series electric actuator. The actuators provide two-position, three-position, or 0-10 VDC control. Typical applications include hot or chilled water for zones with radiators, floor heating via manifolds, fan coil units, cooling ceilings, wall-mounted boilers, and VAV applications.
Kele Description
1/2"NO,VLV,1.6 CV,BZ,200N, FXUM
Manufacturer
Siemens Industry
599 Series Valve-Actuator Assy Data
