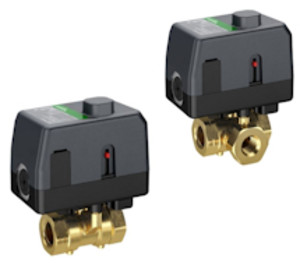

VBB2N11+M332A01 | Schneider Electric Buildings | Control Valves
3/4IN/2W/W/24V/FLTG/NSR/10FT/PLENUM-CABLE
Brand:Schneider Electric Buildings
MPN:VBB2N11+M332A01
SKU:VBB2N11+M332A01
List Price:
$513.00
Today's Price:
$266.76
Log in for customized pricingproduct specifications
Type
Assembly
Connection
NPT
Actuator Type
Electric
Cv
0.7 CV
Fail-Safe
Non-Spring Return
Supply Voltage (Nominal)
24 VAC
Trim Material
Brass
Pattern
2-way
Size
3/4 in
Control Signal
Floating
product series specifications
Actuator: 24 Vac for floating and proportional
Voltage: 110 to 230 Vac for two position multi-voltage types
Power Requirements: See Table-1, Table-2, and Table-3. in Datasheet
Control Signal: 2-Position, Floating, or Proportional; half wave rectified power supply
Timing, Full Open to Full Close: See Table-1, Table-2 and Table-3. in Datasheet
Manual Operating Lever / Position Indicator: Standard on all models.
Auxiliary End Switch (optional): SPST 24 Vac/Vdc, 101 mA to 5 A max.
Materials: Thermoplastic base and cover. Approved for use in air plenums.
Shipping & Storage Temperature Limit: -40° to 169°F (-40° to 76°C).
Operating Temperature Limit at max fluid temp:
Floating 32° to 140°F (0° to 60°C); Proportional 32° to 140°F (0° to 60°C); Two-Position 32° to 169°F (0° to 76°C); Humidity 5 to 95% relative humidity, noncondensing.
Locations: NEMA 2, IEC IP31. Indoor Use Only.
Seat Material: PTFE
Characterized Insert: Glass-filled PEEK
Valve: Size: 1/2", 3/4" (2 way or 3 way)
Service: Hot and chilled water, up to 60% glycol
System Static Pressure Limit: 600 psi (4137 kPa)
Fluid Temperature Limit : 20° to 250°F (-7° to 121C)
Cv (Kv) : See Table-4, Table-5, Table-6, and Table-7. in Datasheet
Close-off Pressure: 130 psi Two-Way; 70 psi Three-Way
Differential Pressure : 30 psi normal operation; 20 psi quiet operation
Seat Leakage : ANSI class IV (0.01%) at both A and B ports with pressure at inlet
End Connections : NPT threaded (VBxxNxx) and Rp threaded (VBxxRxx).
Rangeability : Greater than 300:1.
Body Material : Forged brass.
Stem Material : Stainless steel anti-blow out stem with dual Viton™ o-rings
Ball Material : Chrome plated brass (VBB series) or stainless steel (VBS series)
Approvals: UL, cULus, RoHS, REACH
product series features
- Easy product selection - all actuators fit all valve bodies
- Fast, easy actuator installation - no linkage or tools required
- Brass and stainless steel trim models
- Two-position, Floating or Proportional (0 to 5 VDC, 0 to 10 VDC, 5 to 10 VDC or 4 to 20 mA dc)
- Proportional actuator is direct or reverse acting
more information & related documents
Series Description
The Schneider Electric VBB/VBS Ball Valves Series are interchangeable valves and valve actuators, making it simple to implement upgrades and accommodate building system changes. As assemblies, the SmartX valve actuators and VBB/VBS ball valves series give users the freedom and flexibility to easily optimize and precisely control a wide variety of applications. They also accept floating and proportional control signals from a DDC system, controller, or thermostat for control of hot or chilled water, and solutions of up to 60% glycol. This makes them ideal for installation in VAV re-heat, fan-coil, and unit ventilation applications. The VBB/VBS Series proportional actuators allow easy configuration of control signals via Dip Switch. Dip Switches are accessed conveniently through an easy to open access hatch on the side of the actuator, eliminating the need to remove the cover of the actuator. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
3/4IN/2W/W/24V/FLTG/ NSR/10FT/PLENUM-CABLE
Manufacturer
Schneider Electric Buildings
VBB-VBS Two Position Install Instructions F-27392-4.PDF
