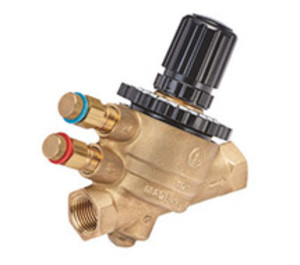

VP140FBD | Johnson Controls | Control Valves
PICV-R 2" NPT 48.4GPM; 2" FNPTU; RFE PICV; 48.4GPM
Brand:Johnson Controls
MPN:VP140FBD
SKU:VP140FBD
List Price:
$4,077.00
Today's Price:
$2,120.04
Log in for customized pricingproduct specifications
Type
Valve Only
Connection
NPT
Trim Material
Brass
Size
2 in
GPM
48.4 GPM
product series specifications
Service: Water or water-glycol mixture, (up to 50% glycol) quality to VDI 2035
Accuracy up to 15 PSID (100 kPa): ±5%
Fluid Temperature Limits: 14 to 248°F (-10 to 120°C), Not Rated for Steam Service
Maximum Actuator FluidTemperature Limit: 14 to 212°F (-10 to 100°C), Not Rated for Steam Service
Maximum ∆ P: 87 psi (600 kPa)
Maximum Working Pressures: 362 psi (2,500 kPa)
Close Off Pressure: 100 psi (700 kPa)
Minimum Ambient Operating Conditions: 32°F (0°C), 90% RH, Noncondensing
Maximum Ambient Operating Conditions: (limited by the actuator): 122°F (50°C), 90% RH, Noncondensing
Leakage: ANSI Class IV IEC 60534-4; American National Standards Institute (ANSI) Class IV Leakage
Approvals: CE
product series features
- Availability of both axial (globe) and rotary (ball) valve styles
- No Cv calculation
- Automatic system balancing
- Combined control and Balancing valve
- Close-off pressure rating - Axial valve 100 psi (700 kPa) and Rotary valve 200 psi (1,400 kPa)
- Wide range of operating differential pressure rating
- Availability of factory-mounted Electric Actuators
- American National Standards Institute (ANSI) Class IV Leakage and ±5% Flow Accuracy
more information & related documents
Series Description
The Johnson Controls VP140 Series Pressure Independent Valves (PICVs) are designed to regulate the flow of hot or chilled water and 50% glycol solutions in response to the demand of a controller in HVAC systems. The pressure independent valves eliminate the need for separate balancing valves. These valves are available in sizes 1/2 through 2 in. (DN15 through DN50) with factory mounted Johnson Controls® Non-Spring Return and Spring Return Electric Actuators for floating or proportional control or valve only configuration. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
PICV-R 2" NPT 48.4GPM 2"FNPTU 48.4 GPM
Manufacturer
Johnson Controls
