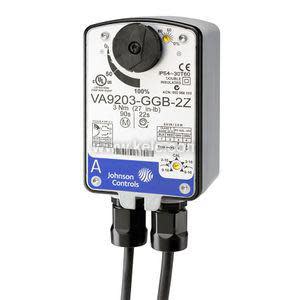

Grey actuator housing with circular dial indicator, printed scale and two cable glands

VA9203-BGA-2 | Johnson Controls | Control Valves

Rotary Actuator, 27Lb-In, Direct-Coupled, On/Off Control, Spring-Return

Brand:Johnson Controls

MPN:VA9203-BGA-2

SKU:VA9203-BGA-2

List Price:

$409.00

Today's Price:

$212.68

product datasheet

product specifications

Torque

27 in-lb

Type

Actuator Only

Actuator Type

Electric

Fail-Safe

Spring Return

Supply Voltage (Nominal)

24 VAC

Control Signal

Two Position

product series specifications

Size: 1/2" to 2" FNPT

Cv Range: 1.2 to 73.7

Life Expectancy: 200,000 leak-free cycles

Body Pattern: Two-way and three-way mixing or diverting

Flow Characteristic: Equal percentage

Leakage Rating: ANSI Class IV (0.01% of Cv)

Maximum Closeoff Pressure: 200 psid (1378 kPa)

Pressure Drop: 50 psid (345 kPa) maximum; full port valves up to 150 psid (1034 kPa)

Pressure Rating: 580 psig (3996 kPa), PN40

Materials Of Construction: Forged brass body, stainless steel (or chrome-plated brass) ball, stainless steel (or nickel-plated brass) stem, EPDM o-ring stem seals and graphite reinforced PTFE seats

Media Compatibility: Hot or chilled water, <50% glycol, <15 psi steam (stainless trim models only)

Media Temperature Range: Stainless trim: 23° to 250°F (-5° to 121°C); Brass trim: 23° to 203°F (-5° to 95°C):

Compatible Actuators: Non-spring return: VA9104 (integral linkage) or M9109 w/M9000-520 linkage; Spring return: VA9203, VA9208 (integral linkage):

Operating Temperature: See M9100 Series and M9200 Series in ACTUATORS & DAMPERS catalog section

Warranty: 1 year

product series features

Minimum 200,000 full cycle life expectancy
Compatible with water, glycol, and low-pressure steam
Equal percentage flow characteristics
Assembled or ordered separately

more information & related documents

Series Description

The Johnson Controls VG1000 Series ball valves are available with two- and three-way body patterns with a characterized insert for equal percentage flow control and Cv ratings in the range of traditional globe valves. They are available in connection sizes from 1/2 in. to 2 in. (Cv's from 1.2 to 73.7). The VG1000 Series valves are used in combination with spring return and non-spring return direct-coupled actuators from Johnson Controls. The VG1000 Series are designed to control chilled water, hot water, 50% glycol, and 15 psig steam (stainless trim models only).

Kele Description

SR TWO-POS 24V FOR VG1000, UP TO 1 IN

Manufacturer

Johnson Controls
