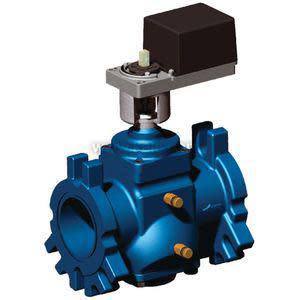

A bulky blue valve body with several flanged ports and a black rectangular motorised actuator attached to the stem

VRW2JV4SMD/M | Honeywell | Control Valves

Mod F/S Flange PICV 2-1/2 and 3 in. 39 -

Brand:Honeywell

MPN:VRW2JV4SMD/M

SKU:VRW2JV4SMD

List Price:

$14,422.00

Today's Price:

$7,499.44

product datasheet

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Assembly

Connection

Flange

Fail-Safe

Spring Return

Trim Material

Stainless Steel

Pattern

2-way

Size

2-1/2 in and 3 in

Control Signal

Analog

product series specifications

Valve Type: Dynamic Pressure Regulated Control Valve

Body Style: Two-way, multi-turn, non-rising stem valve, straight-through flow

Pipe Size: 2 ½ to 6" with multi-size wafer flange pipe fittings

Body Pressure Rating (maximum): 580 psig (40 bar) at 248°F (120°C)

Controlled Medium: Water or Glycol solutions up to 50%; not suitable for combustible gases, oil or steam

Medium Temperature Range: -4° to 248°F (-20° to 120°C)

Maximum Differential Pressure: 58 psid (400 kPa)

Close-off pressure: 101 psid (700 kPa), maximum 0.2% leakage

Flow Characteristics: Equal percentage

Body: Ductile iron (ASTM A536-65T, Class 60-45-18)

Flow Optimizer: Stainless steel

Stem Seals: EPDM and Nitrile O-rings

Ball Seals: Reinforced Teflon® seals, with EPDM O-rings

Regulator: EPDM rolling diaphragm in 316 stainless steel housing

Actuators: Supply Voltage: 24VAC, 50/60Hz

Control Signal: 2-10VDC, 4-20 mA (w/ external 500Ω resistor), Pulse-width modulating, floating, two-position SPDT

Action: Non-Fail Safe: Stay in Place

Fail-Safe (field configurable): Open/Closed

Normal position (no signal): Open/Closed

Actuator Stroke (degrees): 6 x 360°

Timing: 150 seconds/60Hz

Feedback: 4-20 mA (2-10VDC) built-in

Warranty: 1 year on valves : * Actuators available factory-installed.

product series features

Controls hot or chilled water with up to 50% glycol
Differential pressure regulator for constant pressure drop across valve seat
Positive pressure, rolling diaphragm regulator design for flow control accuracy of ±5%
Equal percentage flow characteristic using multi-turn, non-rising, characterized plug
Six-turn actuator with floating or modulating inputs for floating or fail-safe action
Regulated flow rates from 39 to 469 gpm
Stainless steel trim
50 discrete, selectable flow rates available per valve size
Two Test Ports for venting or pressure gauge attachment

more information & related documents

Series Description

The Honeywell VRW Series pressure-regulated control valves reduce overall installation labor by integrating flow control and temperature control functions into a single valve assembly and then automatically controlling the flow in each hydronic system circuit to maintain temperature when piping pressures fluctuate. The valves feature an integrated pressure control cartridge that delivers flow balancing and control functions in one package. VRW valves are flanged, sizes 2 1/2 in. to 6 in. FNPT, and use standard Honeywell 44 in-lb fail-safe and non-fail safe direct-coupled actuators.

Kele Description

2-1/2 AND 3 IN WAFER, ADJ LOW, PROP FAILSAFE ACT
