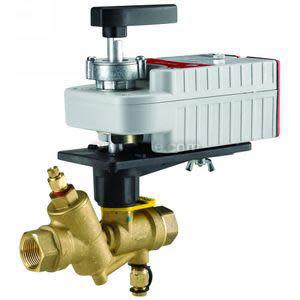

Brass valve with grey actuator and side port

VRN2FSPX6202 | Honeywell | Control Valves

VRN2F035.00PX+MS7505A2030+FSC+3R--2in 2-way 35GPM Brass Trim+Modulating Floating 24 VAC Fail Safe Closed NEMA 3R Enclosure

Brand:Honeywell

MPN:VRN2FSPX6202

SKU:VRN2FSPX6202

List Price:

$3,405.63

Today's Price:

$1,770.93

product datasheet

installation instructions

Lead time of 7 days. Chat with Kele experts now

product specifications

Type

Assembly

Connection

NPT

Trim Material

Stainless Steel

Pattern

2-way

Size

2 in

GPM

30 GPM

Control Signal

Analog,Floating

product series specifications

Valve Type: Dynamic Pressure Regulated Control Valve

Body Style: Two-way ball valve, straight-through flow, full port with patented flow control insert

Pipe Size: 1/2" to 3" with female NPT pipe fittings

Body Pressure Rating (maximum): 360 psi (2500 kPa) at 250°F (121°C)

Controlled Medium: Water or Glycol solutions up to 50%; not suitable for combustible gases, oil or steam

Medium Temperature Range: -22°C to 250°F (-30°C to 121°C)

Maximum Differential Pressure: 1 gpm (1/2" valve) to 95 gpm (3" valve)

Close-off pressure: 100 psid

Flow Characteristics: Equal percentage with flow control insert

Body: Forged brass (ASTM B283)

Flow Optimizer: Laser-milled, glass-reinforced Noryl®

Trim (ball and stem): Nickel-chrome plated brass, or stainless steel

Stem Seals: EPDM O-ring and Teflon® bearings

Ball Seals: Reinforced Teflon® seals, with EPDM O-rings

Regulator: Hydrogenated acrylonitrile-butadiene rubber rolling diaphragm in stainless steel housing

Compatible Actuators:

Non-Spring Return: ML6161, ML7161, MN6105*, MN7505*

Spring Return: MS6105, MS7505*, MS8105; MS6103, MS7503, MS8103 only at 1/2" or 3/4" (DN15 ~ DN 20)

Minimum Torque Required:35 lb-in (4 Nm) up to 3" (DN80) 18 lb-in (2 Nm) up to 3/4" (and 1" up to 9 gpm)

Warranty: 1 year on valves, 5 years on actuators * These actuators available factory-installed.

product series features

Sizes from 1/2 to 3 in. with internal (female) NPT connections
Controls hot or chilled water with up to 50% glycol
Regulated flow rates available from 1 to 95 gpm
Differential pressure regulator for constant pressure drop across valve seat
Positive pressure, rolling diaphragm regulator design for flow control accuracy of ±5%
Equal percentage flow characteristic using patented flow control ball insert
Multiple maximum flow rates available per valve size
Patented ball seals for low operating torque
Nickel-chrome plated brass or stainless steel trim
Choice of factory-installed actuation using Honeywell N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/Floating
Spring return actuators field-configurable for normally open or normally closed fail-safe position
Removable, manual operating handle to control valve during installation or in an event of power failure
Upstream Test Port for venting or pressure gauge attachment
Three actuator orientations on the valve for cramped spaces
Integral snubber eliminates affect of system pressure fluctuations and entrapped air while improving flow performance

more information & related documents

Series Description

The Honeywell VRN Series pressure-regulated control valves reduce overall installation labor by integrating flow control and temperature control functions into a single valve assembly and then automatically controlling the flow in each hydronic system circuit to maintain temperature when piping pressures fluctuate. The valves feature an integrated pressure control cartridge that delivers flow balancing and control functions in one package. Calculating Cv is not required, simply match the circuit flow rate with the valve capacity to determine the correct model number. VRN valves are threaded, sizes 1/2 in. to 3 in. FNPT, and use standard Honeywell 44 in-lb fail-safe and non-fail safe direct-coupled actuators.

Kele Description

PICV/2IN/2W/35GPM/MOD FLTG(FAIL CLOSED)-24 VAC

Manufacturer

Honeywell
