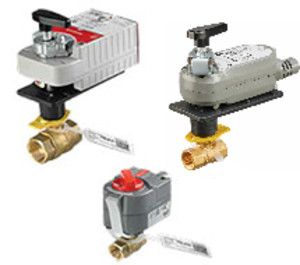

* product family image displayed

VBN3B003.80PX | Honeywell | Control Valves





List Price:


Today's Price:


Availability: Usually Ships in Less Than 13 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications


1/2" to 3" FNPT (three-way to 2-1/2″)

Cv Range

0.38 to 266

Body Pattern

Two-way and three-way (mixing or diverting)

Flow Characteristic

Two-way Equal percentage for models with parabolic insert, linear for full port models

Three-way Equal percentage ports A-to-AB and linear ports B-to-AB

Leakage Rating

ANSI Class IV (0.01% of Cv)

Maximum Closeoff Pressure

Two-way 1/2" and 3/4": 130 psid (897 kPa);

Two-way 1" to 3": 100 psid (690 kPa);

Three-way 1/2" to 1": 50 psid (345 kPa);

Three-way 1-1/4" to 2-1/2": 40 psid (276 kPa)

Materials Of Construction


Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way)ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon® bass seals


316 stainless steel ball and stem

Media Compatibility

Hot or chilled water, up to 50% glycol

Media Temperature Range

-22° to 250℉ (-30° to 121℃)

Compatible Actuators

Any Honeywell or Kele 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3"

Pressure Rating

360 psig (2482 kPa) @ 250℉ (121℃)

Operating Temperature

with MN actuators

-5° to 140℉ (-20° to 60℃)

with MS actuators

-40° to 150℉ (-40° to 65℃)

with MVN actuators

-4° to 131℉ (-20° to 55℃)


5 years

product family features

  • Parabolic flow insert constructed into the ball
  • Cv ratings similar to globe valves
  • Three-way body pattern similar to globe valves
  • Low torque means smaller, lower cost actuators
  • Common mounting bracket
  • Removable manual override handle
  • Flexible bracket orientation
  • Plenum rated
  • Available with or without actuator
  • Nema 3R option available

more information & related documents

Family Description

The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves. They are designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics. A single-style bracket maximizes simplicity and flexibility in mounting spring or non-spring return actuators. The valve bodies are 1/2" to 3" NPT sizes and use low-torque, low-cost actuators.
