VBN2DMSXG101

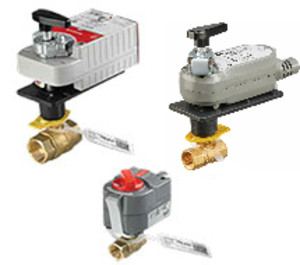

* product series image displayed

VBN2DMSXG101 | Honeywell | Control Valves

2-WAY, 1-1/4IN-NPT, 37 CV, SS TRIM, COMMUNICATING SYLK , NO, 24VAC

Brand:Honeywell

MPN:VBN2DMSXG101

SKU:VBN2DMSXG101

List Price:

$1,048.00

Today's Price:

$544.96



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Connection

NPT

Cv

37 CV

Pattern

2-way

Trim Material

Stainless Steel

Size

1-1/4 in

Control Signal

Communicating

Supply Voltage (Nominal)

24 VAC

product series specifications

    Size:
  • 1/2" to 3" FNPT (three-way to 2-1/2‚Ä=)
    Cv Range:
  • 0.38 to 266
    Body Pattern:
  • Two-way and three-way (mixing or diverting)
    Flow Characteristic:
  • Two-way Equal percentage for models with parabolic insert, linear for full port models
    :
  • Three-way Equal percentage ports A-to-AB and linear ports B-to-AB
    Leakage Rating:
  • ANSI Class IV (0.01% of Cv)
    Maximum Closeoff Pressure:
  • Two-way 1/2" and 3/4": 130 psid (897 kPa);
    Two-way 1" to 3": 100 psid (690 kPa);:
    Three-way 1/2" to 1": 50 psid (345 kPa);:
    Three-way 1-1/4" to 2-1/2": 40 psid (276 kPa):
    Materials Of Construction:
    Two-way:
  • Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way)ball and stem, EPDM o-ring stem seals and EPDM with reinforced TeflonÆ bass seals
    Two-way:
  • 316 stainless steel ball and stem
    Media Compatibility:
  • Hot or chilled water, up to 50% glycol
    Media Temperature Range:
  • -22° to 250‚Ñâ (-30° to 121‚ÑÉ)
    Compatible Actuators:
  • Any Honeywell or Kele 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3"
    Pressure Rating:
  • 360 psig (2482 kPa) @ 250‚Ñâ (121‚ÑÉ)
    Operating Temperature:
    with MN actuators:
  • -5° to 140‚Ñâ (-20° to 60‚ÑÉ)
    with MS actuators:
  • -40° to 150‚Ñâ (-40° to 65‚ÑÉ)
    with MVN actuators:
  • -4° to 131‚Ñâ (-20° to 55‚ÑÉ)
    Warranty:
  • 5 years

product series features

  • Parabolic flow insert constructed into the ball
  • Cv ratings similar to globe valves
  • Three-way body pattern similar to globe valves
  • Low torque means smaller, lower cost actuators
  • Common mounting bracket
  • Removable manual override handle
  • Flexible bracket orientation
  • Plenum rated
  • Available with or without actuator
  • Nema 3R option available

more information & related documents

Series Description

The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves. They are designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics. A single-style bracket maximizes simplicity and flexibility in mounting spring or non-spring return actuators. The valve bodies are 1/2 in. to 3 in. NPT sizes and use low-torque, low-cost actuators.

Kele Description

2-WAY, 1-1/4IN-NPT, 37 CV, SS TRIM, COMMUNICATING SYLK , NO, 24VAC

Manufacturer

Honeywell
