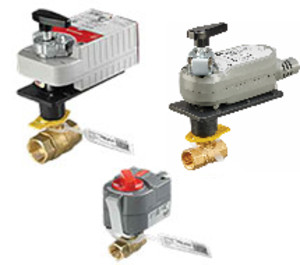

* product family image displayed
VBN2C015.30PX | Honeywell | Control Valves
2-WAY/1IN/CV-15.3/NPT/BRASS
Manufacturer:Honeywell
MPN:VBN2C015.30PX
SKU:VBN2C015.30PX
List Price:
$319.54
Today's Price:
$166.16
Availability: Usually Ships in Less Than 9 Business Days
product family specifications
- Size:
- 1/2″ to 3″ FNPT (three-way to 2-1/2″)
- Cv Range:
- 0.38 to 266
- Body Pattern:
- Two-way and three-way (mixing or diverting)
- Flow Characteristic:
- Two-way Equal percentage for models with parabolic insert, linear for full port models
- Three-way Equal percentage ports A-to-AB and linear ports B-to-AB
- Leakage Rating:
- ANSI Class IV (0.01% of Cv)
- Maximum Closeoff Pressure:
- Two-way 1/2″ and 3/4″: 130 psid (897 kPa);
- Two-way 1″ to 3″: 100 psid (690 kPa);:
- Three-way 1/2″ to 1″: 50 psid (345 kPa);:
- Three-way 1-1/4″ to 2-1/2″: 40 psid (276 kPa):
- Materials Of Construction:
- Two-way:
- Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way)ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon® bass seals
- Two-way:
- 316 stainless steel ball and stem
- Media Compatibility:
- Hot or chilled water, up to 50% glycol
- Media Temperature Range:
- -22° to 250°F (-30° to 121°C)
- Compatible Actuators:
- Any Honeywell or Kele 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3″
- Pressure Rating:
- 360 psig (2482 kPa) @ 250°F (121°C)
- Operating Temperature:
- with MN actuators:
- -5° to 140°F (-20° to 60°C)
- with MS actuators:
- -40° to 150°F (-40° to 65°C)
- with MVN actuators:
- -4° to 131°F (-20° to 55°C)
- Warranty:
- 5 years
product family features
Parabolic flow insert constructed into the ball,Cv ratings similar to globe valves,Three-way body pattern similar to globe valves,Low torque means smaller, lower cost actuators,Common mounting bracket,Removable manual override handle,Flexible bracket orientation,Plenum rated,Available with or without actuator,Nema 3R option available
more information & related documents
Family Description
The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves. They are designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics. A single-style bracket maximizes simplicity and flexibility in mounting spring or non-spring return actuators. The valve bodies are 1/2 in. to 3 in. NPT sizes and use low-torque, low-cost actuators.
Kele Description
2-WAY/1IN/CV-15.3/NPT/BRASS
Manufacturer
Honeywell
