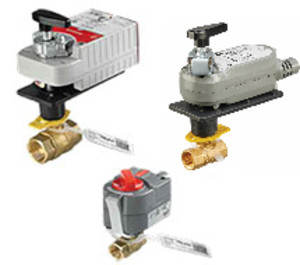

VBN2AGSXB200 | Honeywell | Control Valves
2-WAY, 1/2IN-NPT, 2.6 CV, SS TRIM, MODULATING FLOATING, NC, 24VAC, 1 AUX SWITCH
Manufacturer:Honeywell
MPN:VBN2AGSXB200
SKU:VBN2AGSXB200
List Price:
$1,037.17
Today's Price:
$539.33
product family specifications
Size
1/2" to 3" FNPT (three-way to 2-1/2″)
Cv Range
0.38 to 266
Body Pattern
Two-way and three-way (mixing or diverting)
Flow Characteristic
Two-way Equal percentage for models with parabolic insert, linear for full port models
Three-way Equal percentage ports A-to-AB and linear ports B-to-AB
Leakage Rating
ANSI Class IV (0.01% of Cv)
Maximum Closeoff Pressure
Two-way 1/2" and 3/4": 130 psid (897 kPa);
Two-way 1" to 3": 100 psid (690 kPa);
Three-way 1/2" to 1": 50 psid (345 kPa);
Three-way 1-1/4" to 2-1/2": 40 psid (276 kPa)
Materials Of Construction
Two-way
Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way)ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon® bass seals
Two-way
316 stainless steel ball and stem
Media Compatibility
Hot or chilled water, up to 50% glycol
Media Temperature Range
-22° to 250℉ (-30° to 121℃)
Compatible Actuators
Any Honeywell or Kele 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3"
Pressure Rating
360 psig (2482 kPa) @ 250℉ (121℃)
Operating Temperature
with MN actuators
-5° to 140℉ (-20° to 60℃)
with MS actuators
-40° to 150℉ (-40° to 65℃)
with MVN actuators
-4° to 131℉ (-20° to 55℃)
Warranty
5 years
product family features
- Parabolic flow insert constructed into the ball
- Cv ratings similar to globe valves
- Three-way body pattern similar to globe valves
- Low torque means smaller, lower cost actuators
- Common mounting bracket
- Removable manual override handle
- Flexible bracket orientation
- Plenum rated
- Available with or without actuator
- Nema 3R option available
more information & related documents
Family Description
The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves. They are designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics. A single-style bracket maximizes simplicity and flexibility in mounting spring or non-spring return actuators. The valve bodies are 1/2" to 3" NPT sizes and use low-torque, low-cost actuators.
Kele Description
2-WAY, 1/2IN-NPT, 2.6 CV, SS TRIM, MODULATING FLOATING, NC, 24VAC, 1 AUX SWITCH
Manufacturer
Honeywell
