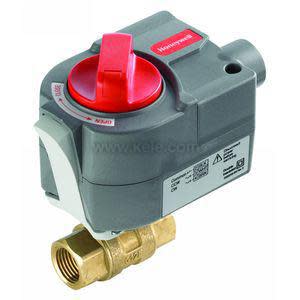

MVN613A0000 | Honeywell | Control Valves

Actuator Type: Valve

Rotational Stroke: 90° ±3°

Fail Safe Mode: Non-spring return, Fail in place

Torque: 27 lb-in. (3 Nm).

External Auxiliary Switches Available: No

Supply Voltage: 24 VAC +20%, -15%, 24 VDC

Power Consumption: 5 VA- Modulating; 1.5 VA - Floating; 6 VA - Fast Acting SPDT

Environmental Rating: NEMA2

Frequency: 50 Hz; 60 Hz

Mounting: Click-on installation – no tool required

Noise Rating at 1m (Maximum): 35 dB(A) max at 1 m [50 dB(A) for MVN643]

Timing: 90 sec. for MVN613 and MVN713; 30 sec. for MVN643

Electrical Connections: Field wiring 18 to 20 AWG to screw terminals, located under the removable access cover

Humidity Ratings: 5% to 95% RH noncondensing

Design Life (at Rated Voltage):60,000 cycles; 1 cycle = 0°- 90°- 0°

Cable Specification: 18 AWG, Plenum Rated, 300 V, 10 A, 3 ft. length from end of access cover

Operating Temperature: -4° to 131°F (-20° to 55°C)

Operating Humidity: 5 to 95% RH, noncondensing

Enclosure Rating: NEMA 3R, IP40, Plenum rated plastic housing

Dimensions:

Standard base units 2-13/16"W x 3-7/8"H x 4-9/16"D (7.1 x 9.8 x 11.6 cm)

Low Profile base units 2-13/16"W x 3-1/2"H x 4-9/16"D (7.1 x 8.2 x 11.6 cm)

Weight: 1.4 lb (0.64 Kg)

Warranty: 1 year
