STM3-3-176/DS24-180-WS | Bray | Control Valves

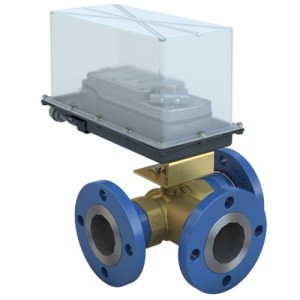

STM Flanged Characterized ball Valve, 3 inch, 3way, CV 176, Brass Body, Ductile Iron Flanges, Stainless Steel ball and stem, 50PSI Close-off, ANSI 150, Damper & Valve actuator, 24 VAC/DC, 177 lb-in, on/off, Spring Return, Nema 2, IP54, Weather Shield for DS-180 Actuator
Brand:Bray
MPN:STM3-3-176/DS24-180-WS
SKU:STM3-3-176/DS24-180-WS
List Price:
$4,390.00
Today's Price:
$2,282.80
Log in for customized pricingproduct specifications
Options
Weather Sheild,Manual Override Handwheel
Type
Assembly
Close Off Pressure
50 psi
Actuator Type
Spring Return
Medium
Water/Glycol
Valve Type
Standard Pressure
Enclosure Rating
IP54,NEMA 2
Cv
176 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
3-way
Size
3 in
Actuator Power Type
Electric
Fail Position
Open
Control Signal
Two Position
product series features
- Lap Flange - Allows easy positioning and alignment with mating flanges.
- Low Torque - Smaller actuator and longer life.
- Dimensionally Stable at High Temperatures - Works in low pressure steam applications.
- 5 Year Warranty - Assurance of trouble free operation.
more information & related documents
Series Description
STM Series Flanged Ball Valves are designed to regulate the flow of hot water, chilled water, and 50% glycol solutions to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. The valves come in sizes of 2-1/2", 3", and 4". The (ANSI) Class 150 flanged valves come in both 2-way and 3-way configurations and are available in multiple Cv ratings. Bray offers the valve, linkage, and actuator assemblies for factory or field mounting with either spring return or non-spring return actuators. The STM is designed for electronic actuator operation to a maximum close-off pressure of 100 PSI and for temperature ranges 0˚ to 284˚F.
Kele Description
3IN,STM FLG CHAR BALL,3WAY,CV 176,24VAC/DC,177LB-IN,ON/OFF,SR,WTHR SHLD
Manufacturer
Bray
Bray Commercial Large Weather Shield Submittal
