STM250-2-74/DS120-180-A | Bray | Control Valves

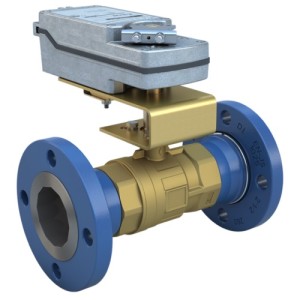

STM Flanged Characterized ball Valve, 2.5 inch, 2way, CV 74, Brass Body, Ductile Iron Flanges, Stainless Steel ball and stem, 100PSI Close-off, ANSI 150, Normally Open, Damper & Valve actuator, 120/240 VAC, 177 lb-in, on/off, Spring Return, Auxiliary Switch, Nema 2, IP54
Brand:Bray
MPN:STM250-2-74/DS120-180-A
SKU:STM250-2-74/DS120-180-A
List Price:
$2,925.00
Today's Price:
$1,521.00
Log in for customized pricingproduct specifications
Type
Assembly
Close Off Pressure
100 psi
Actuator Type
Spring Return
Medium
Water/Glycol
Housing
Weather Shield
Valve Type
Standard Pressure
Enclosure Rating
IP54,NEMA 2
Cv
74 CV
Supply Voltage (Nominal)
120 VAC,240 VAC
Pattern
2-way
Size
2-1/2 in
Actuator Power Type
Electric
Fail Position
Open
With Auxiliary Switch
Yes
Control Signal
Two Position
product series features
- Lap Flange - Allows easy positioning and alignment with mating flanges.
- Low Torque - Smaller actuator and longer life
- Dimensionally Stable at High Temperatures - Works in low pressure steam applications.
- 5 Year Warranty - Assurance of trouble free operation.
more information & related documents
Series Description
STM Series Flanged Ball Valves are designed to regulate the flow of hot water, chilled water, and 50% glycol solutions to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. The valves come in sizes of 2-1/2", 3", and 4". The (ANSI) Class 150 flanged valves come in both 2-way and 3-way configurations and are available in multiple Cv ratings. Bray offers the valve, linkage, and actuator assemblies for factory or field mounting with either spring return or non-spring return actuators. The STM is designed for electronic actuator operation to a maximum close-off pressure of 100 PSI and for temperature ranges 0˚ to 284˚F.
Kele Description
2.5IN,STM FLG CHAR BALL,2WAY,CV 74,NO,DAMPER & 120/240 VAC,177LB-IN,ON/OFF,SR,SW
Manufacturer
Bray
