ST2-75-2-05C/VAS24-27-WS | Bray | Control Valves

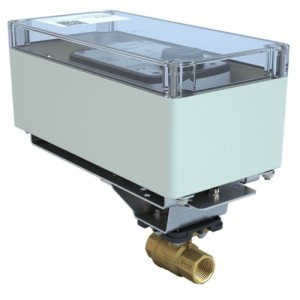

ST2 Threaded Characterized ball Valve, 3/4 inch, 2way, CV 4.7, forged brass Body with Stainless Steel ball and stem, 200 PSI Close-off, Normally Closed, ST2 Direct Mount Valve actuator, 24 VAC/dc, 27 lb-in, on/off, Spring Return, Nema 2, IP54, Weather Shield for ST2 Direct Mount VA Series Actuators- NEMA 4, 4X

Brand:Bray

MPN:ST2-75-2-05C/VAS24-27-WS

SKU:ST2-75-2-05C/VAS24-27-WS

List Price:

$-.--

Today's Price:

$-.--

product specifications

Options

Weather Sheild

Type

Assembly

Connection

NPT Threaded

Close Off Pressure

200 psi

Actuator Type

Spring Return

Medium

Water/Glycol

Valve Type

Standard Pressure

4.7 CV

Supply Voltage (Nominal)

24 VAC,24 VDC

Pattern

2-way

Size

3/4 in

Actuator Power Type

Electric

Fail Position

Closed

Control Signal

Two Position

product series features

Meets any HVAC application
Worry-free at high differential pressures
Energy efficient
Minimizes actuator costs/extends life
Superior control accuracy and stability
5 Year Warranty

more information & related documents

Series Description

The Soft Touch 2 (ST2) Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The ST2 series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 PSI. For system types;  Fan Coils, VAV Reheat Coils, Chilled Beams, Computer Room Air Conditioning Units and Air Handling Units.

Kele Description

3/4IN,ST2 THREADED,2WAY,CV 4.7,NC,24VAC/DC,27LB-IN,ON/OFF,SR,WTHR SHLD,NEMA 4,4X

Manufacturer

Bray
