ST2-2-3-74HT/VAM24-90-P | Bray | Control Valves

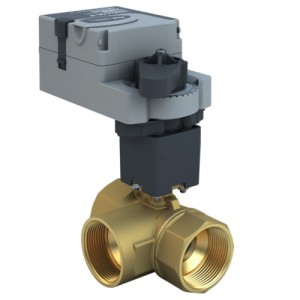

ST2 Threaded Characterized ball Valve, 2 inch, 3way, CV 73.7, forged brass Body with Stainless Steel ball and stem, 200 PSI Close-off, ST2 Direct Mount Valve Actuator, 24 VAC/dc, 88 lb-in, On/off, Floating and Modulating, Non-Spring Return, Nema 5, IP54, Input Signal 0(2) to 10 VDC or 0(4) to 20 mA with field-furnished 500 ohm resistor
Brand:Bray
MPN:ST2-2-3-74HT/VAM24-90-P
SKU:ST2-2-3-74HT/VAM24-90-P
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Options
Time Out,Manual Override Handwheel
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
200 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol/Steam
Valve Type
Standard Pressure
Cv
73.7 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
3-way
Size
2 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Floating,Analog,Two Position
product series features
- Meets any HVAC application
- Worry-free at high differential pressures
- Energy efficient
- Minimizes actuator costs/extends life
- Superior control accuracy and stability
- 5 Year Warranty
more information & related documents
Series Description
The Soft Touch 2 (ST2) Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The ST2 series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 PSI. For system types; Fan Coils, VAV Reheat Coils, Chilled Beams, Computer Room Air Conditioning Units and Air Handling Units.
Kele Description
2IN,ST2 THREADED,3WAY,CV 73.7,24VAC/DC,88LB-IN,ON/OFF,FLTG AND MOD,NSR
Manufacturer
Bray
