ST2-2-2-74/D24-70-A | Bray | Control Valves

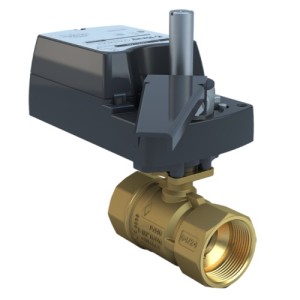

ST2 Threaded Characterized ball Valve, 2 inch, 2way, CV 73.7, forged brass Body with Stainless Steel ball and stem, 200 PSI Close-off, Normally Open, Damper & Valve actuator, 24 VAC/dc, 70 lb-in, on/off or floating, Non-Spring Return, Auxiliary Switch, Nema 2, IP42

Brand:Bray

MPN:ST2-2-2-74/D24-70-A

SKU:ST2-2-2-74/D24-70-A

List Price:

$-.--

Today's Price:

$-.--

product specifications

Options

Manual Override Handwheel

Type

Assembly

Connection

NPT Threaded

Close Off Pressure

200 psi

Actuator Type

Non-Spring Return

Medium

Water/Glycol

Valve Type

Standard Pressure

Enclosure Rating

IP42,NEMA 2

73.7 CV

Supply Voltage (Nominal)

24 VAC,24 VDC

Pattern

2-way

Size

2 in

Actuator Power Type

Electric

Fail Position

Last

With Auxiliary Switch

Yes

Control Signal

Floating,Two Position

product series features

Meets any HVAC application
Worry-free at high differential pressures
Energy efficient
Minimizes actuator costs/extends life
Superior control accuracy and stability
5 Year Warranty

more information & related documents

Series Description

The Soft Touch 2 (ST2) Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The ST2 series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 PSI. For system types;  Fan Coils, VAV Reheat Coils, Chilled Beams, Computer Room Air Conditioning Units and Air Handling Units.

Kele Description

2IN,ST2 THREADED,2WAY,CV 73.7,NO,24VAC/DC,70LB-IN,ON/OFF OR FLTG,NSR,SW

Manufacturer

Bray
