ST2-2-2-47/VA24-35-P-WS | Bray | Control Valves

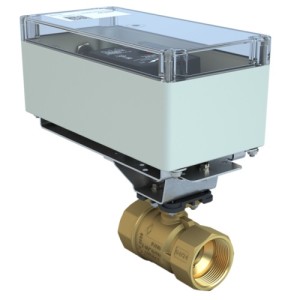

ST2 Threaded Characterized ball Valve, 2 inch, 2way, CV 46.8, forged brass Body with Stainless Steel ball and stem, 200 PSI Close-off, Normally Open, ST2 Direct Mount Valve actuator, 24 VAC, 35 lb-in, on/off or floating, Non-Spring Return, Nema 2, IP42, Weather Shield for ST2 Direct Mount VA Series Actuators- NEMA 4, 4X
Brand:Bray
MPN:ST2-2-2-47/VA24-35-P-WS
SKU:ST2-2-2-47/VA24-35-P-WS
product specifications
Options
Weather Sheild
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
200 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol
Valve Type
Standard Pressure
Enclosure Rating
IP42,NEMA 2
Cv
46.8 CV
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
2 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Floating,Two Position
product series features
- Meets any HVAC application
- Worry-free at high differential pressures
- Energy efficient
- Minimizes actuator costs/extends life
- Superior control accuracy and stability
- 5 Year Warranty
more information & related documents
Series Description
The Soft Touch 2 (ST2) Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The ST2 series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 PSI. For system types; Fan Coils, VAV Reheat Coils, Chilled Beams, Computer Room Air Conditioning Units and Air Handling Units.
Kele Description
2IN,ST2 THREADED,2WAY,CV 46.8,NO,24VAC,35LB-IN,ON/OFF OR FLTG,NSR,WTHR SHLD,NEMA 4,4X
Manufacturer
Bray
ST2 Series IOM
