ST2-150-2-19/DM24-70 | Bray | Control Valves

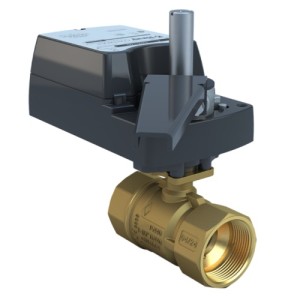

ST2 Threaded Characterized ball Valve, 1.5 inch, 2way, CV 18.7, forged brass Body with Stainless Steel ball and stem, 200 PSI Close-off, Normally Open, Damper & Valve actuator, 24 VAC/dc, 70 lb-in, modulating, Non-Spring Return, Nema 2, IP42, Input Signal 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA

Brand:Bray

MPN:ST2-150-2-19/DM24-70

SKU:ST2-150-2-19/DM24-70

List Price:

$-.--

Today's Price:

$-.--

product specifications

Options

Manual Override Handwheel

Type

Assembly

Connection

NPT Threaded

Close Off Pressure

200 psi

Actuator Type

Non-Spring Return

Medium

Water/Glycol

Valve Type

Standard Pressure

Enclosure Rating

IP42,NEMA 2

18.7 CV

Supply Voltage (Nominal)

24 VAC,24 VDC

Pattern

2-way

Size

1-1/2 in

Actuator Power Type

Electric

Fail Position

Last

Control Signal

Analog

product series features

Meets any HVAC application
Worry-free at high differential pressures
Energy efficient
Minimizes actuator costs/extends life
Superior control accuracy and stability
5 Year Warranty

more information & related documents

Series Description

The Soft Touch 2 (ST2) Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The ST2 series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 PSI. For system types;  Fan Coils, VAV Reheat Coils, Chilled Beams, Computer Room Air Conditioning Units and Air Handling Units.

Kele Description

1.5IN,ST2 THREADED,2WAY,CV 18.7,NO,24VAC/DC,70LB-IN,MOD,NSR

Manufacturer

Bray
