ST2-1-2-19HTC/VAS24-27 | Bray | Control Valves

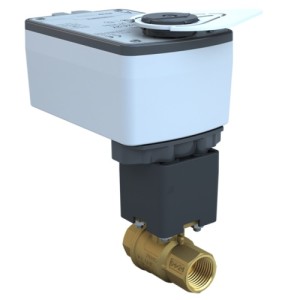

ST2 Threaded Characterized ball Valve, 1 inch, 2way, CV 18.7, forged brass Body with Stainless Steel ball and stem, 200 PSI Close-off, Normally Closed, ST2 Direct Mount Valve actuator, 24 VAC/dc, 27 lb-in, on/off, Spring Return, Nema 2, IP54
Brand:Bray
MPN:ST2-1-2-19HTC/VAS24-27
SKU:ST2-1-2-19HTC/VAS24-27
product specifications
Options
Manual Override Handwheel
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
200 psi
Actuator Type
Spring Return
Medium
Water/Glycol/Steam
Valve Type
Standard Pressure
Enclosure Rating
IP54,NEMA 2
Cv
18.7 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
2-way
Size
1 in
Actuator Power Type
Electric
Fail Position
Closed
Control Signal
Two Position
product series features
- Meets any HVAC application
- Worry-free at high differential pressures
- Energy efficient
- Minimizes actuator costs/extends life
- Superior control accuracy and stability
- 5 Year Warranty
more information & related documents
Series Description
The Soft Touch 2 (ST2) Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The ST2 series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 PSI. For system types; Fan Coils, VAV Reheat Coils, Chilled Beams, Computer Room Air Conditioning Units and Air Handling Units.
Kele Description
1IN,ST2 THREADED,2WAY,CV 18.7,NC,24VAC/DC,27LB-IN,ON/OFF,SR
Manufacturer
Bray
