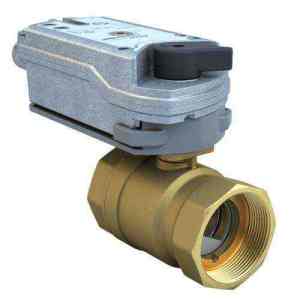

EBV-150-2-48/DCS24-62-P | Bray | Control Valves
1-1/2IN, EBV NPT, 2W, CV 48.3, NSR, 24VAC/DC, 62LB-IN, ON/OFF, IP54; NEMA 1
Brand:Bray
MPN:EBV-150-2-48/DCS24-62-P
SKU:EBV-150-2-48/DCS24-62-P
List Price:
$733.00
Today's Price:
$381.16
Log in for customized pricingproduct specifications
Type
Assembly
Close Off Pressure
200
Actuator Type
Spring Return
Pattern
2-way
product series specifications
Size Range: 1/2" – 2" (15mm – 50mm)
End Connections: NPT Threaded, Press, or Sweat
Temperature Range:
Water (with Standard Mounting) -20°F to 203°F @ 580 psi (-29°C to 95°C)
Water (with "High Temp" Mounting) -2°F to 284°F @ 464 psi (-29°C to 140°C)
Saturated Steam (with "High Temp" Mounting) 15 psig (103 kPa) at 250°F (121°C)
Body Material: Forged Brass Body with Stainless Steel Ball & Stem
Configurations: 2-Way | 3-Way
Max Pressure Drop:
50 psid Maximum Differential Pressure for Valves with Characterized Flow Control Disk
30 psid Maximum for Quiet Service Ball Valves
product series features
- Low Torque
- Direct Mount Actuators
- Multiple Cv ratings in each size
- High Rangeability
more information & related documents
Series Description
The Bray Commercial EBV 2-Way Component Series characterized control ball valves are industry leading solutions for energy efficient, economical and effective control of a wide range of equipment in HVAC applications.
Kele Description
1-1/2IN, EBV NPT, 2W, CV 48.3, NSR, 24VAC/DC, 62LB-IN, ON/OFF, IP54; NEMA 1
Manufacturer
Bray
