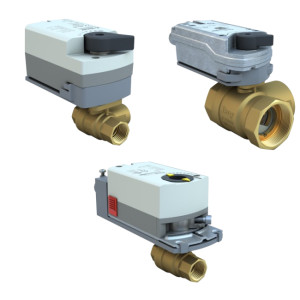

* product series image displayed

EBV-05-2-01HT/DC24-44-TPTO | Bray | Control Valves

1/2IN, EBV NPT, 2W, CV 1.4, NO,NSR, 24VAC/DC, 44LB-IN, ON/OFF; FLTG, TIME OUT, NEMA 2; IP54

Brand:Bray

MPN:EBV-05-2-01HT/DC24-44-TPTO

SKU:EBV-05-2-01HT/DC24-44-TPTO

List Price:

$390.00

Today's Price:

$202.80

Lead time of 5 days. Chat with Kele experts now

product specifications

Type

Assembly

Close Off Pressure

200

Actuator Type

Non Spring Return

1.4

Pattern

2-way

product series specifications

Size Range: 1/2" – 2" (15mm – 50mm)

End Connections: NPT Threaded, Press, or Sweat

Temperature Range:

Water (with Standard Mounting) -20°F to 203°F @ 580 psi (-29°C to 95°C)

Water (with "High Temp" Mounting) -2°F to 284°F @ 464 psi (-29°C to 140°C)

Saturated Steam (with "High Temp" Mounting) 15 psig (103 kPa) at 250°F (121°C)

Body Material: Forged Brass Body with Stainless Steel Ball & Stem

Configurations: 2-Way | 3-Way

Max Pressure Drop:

50 psid Maximum Differential Pressure for Valves with Characterized Flow Control Disk

30 psid Maximum for Quiet Service Ball Valves

product series features

Low Torque
Direct Mount Actuators
Multiple Cv ratings in each size
High Rangeability

more information & related documents

Series Description

The Bray Commercial EBV 2-Way Component Series characterized control ball valves are industry leading solutions for energy efficient, economical and effective control of a wide range of equipment in HVAC applications.

Kele Description

1/2IN, EBV NPT, 2W, CV 1.4, NO,NSR, 24VAC/DC, 44LB-IN, ON/OFF; FLTG, TIME OUT, NEMA 2; IP54

Manufacturer

Bray
