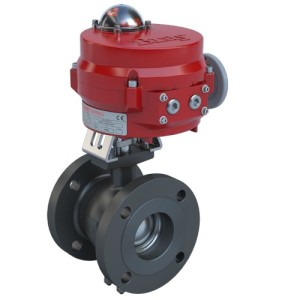

BVMS2-C150-0095/70-24-0081SV | Bray | Control Valves
Flanged segmented ball Valve, Carbon Steel Body, Stainless Steel ball and ASTMA A564 Stem, 2 inch CV 19.5, Pressure rating ANSI Class 150, ANSI Class VI leakage, Normally Open, S70 Direct mounts to Bray Butterfly Valves, quarter turn electric actuator, 24 VAC/DC, modulating, 800 lb-in, NEMA 4, Input Signal 4-20mA, 0-10VDC, 0-5 VDC, 2-10VDC
Brand:Bray
MPN:BVMS2-C150-0095/70-24-0081SV
SKU:BVMS2-C150-0095/70-24-0081SV
List Price:
$9,653.00
Today's Price:
$5,019.56
Log in for customized pricingproduct specifications
Options
Manual Override Handwheel
Type
Assembly
Close Off Pressure
285 psi
Actuator Type
Non-Fail Safe
Medium
Water/Glycol
Valve Type
High Pressure
Cv
19.5 CV
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
2 in
Actuator Power Type
Electric
Fail Position
Last
With Auxiliary Switch
Yes
Control Signal
Analog
product series specifications
Size Range: 2" – 12" (50mm – 300mm)
End Connections: ANSI Class 150 Raised Faced Flanged
Temperature Range: WATER – -20˚ to 380˚F at 200 PSI (-28˚ to 193˚C at 1,378 kPa); SATURATED STEAM – 100 psi (689 kPa)
Body Material: Carbon Steel, Stainless Steel
Configurations: 2-Way
Max Pressure Drop: 1/3 of Inlet Pressure
product series features
- Characterized Ball Segment
- ANSI Class VI Leakage Rating
- One Piece Phosphate Coated Carbon Steel Bodies
- Available NEMA 4 Actuators
more information & related documents
Series Description
The BVMS Series Industrial Ball valves are flanged segmented valves designed for control and On/Off applications where high temperature and high pressure water or steam are used. The valves feature a characterized ball segment for high rangeability with a splined stem connection for precise control, as well as a low friction shaft and thrust bearings for longer life and smaller actuators.
Kele Description
2IN,FLG SEGMENTED BALL,CSCV 19.5,NO,24VAC/DC,MOD,800LB-IN,NEMA 4
Manufacturer
Bray
Bray-bv-bvms-engineering-specification-guide
