BVMS12-S150-3410/70-1300H | Bray | Control Valves

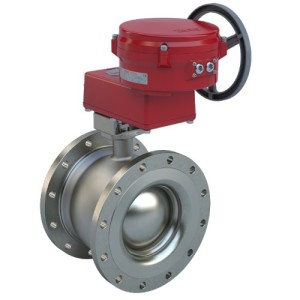

Flanged segmented ball Valve, Stainless Steel Body, Stainless Steel ball and ASTMA A564 Stem, 12 inch CV 3410, Pressure rating ANSI Class 150, ANSI Class VI leakage, Normally Open, S70 Direct mounts to Bray Butterfly Valves, quarter turn electric actuator, 120 VAC, Two position, 13000 lb-in, NEMA 4, Heater
Brand:Bray
MPN:BVMS12-S150-3410/70-1300H
SKU:BVMS12-S150-3410/70-1300H
List Price:
$66,327.00
Today's Price:
$34,490.04
Log in for customized pricingproduct specifications
Options
Heater,Manual Override Handwheel
Torque
13000 in-lb
Type
Assembly
Close Off Pressure
285 psi
Actuator Type
Non-Fail Safe
Medium
Water/Glycol
Valve Type
High Pressure
Enclosure Rating
IP65,IP67,NEMA 4,NEMA 4X
Cv
3410 CV
Supply Voltage (Nominal)
120 VAC
Pattern
2-way
Size
1 ft
Actuator Power Type
Electric
Fail Position
Last
With Auxiliary Switch
Yes
Control Signal
Two Position
product series specifications
Size Range: 2" – 12" (50mm – 300mm)
End Connections: ANSI Class 150 Raised Faced Flanged
Temperature Range: WATER – -20˚ to 380˚F at 200 PSI (-28˚ to 193˚C at 1,378 kPa); SATURATED STEAM – 100 psi (689 kPa)
Body Material: Carbon Steel, Stainless Steel
Configurations: 2-Way
Max Pressure Drop: 1/3 of Inlet Pressure
product series features
- Characterized Ball Segment
- ANSI Class VI Leakage Rating
- One Piece Phosphate Coated Carbon Steel Bodies
- Available NEMA 4 Actuators
more information & related documents
Series Description
The BVMS Series Industrial Ball valves are flanged segmented valves designed for control and On/Off applications where high temperature and high pressure water or steam are used. The valves feature a characterized ball segment for high rangeability with a splined stem connection for precise control, as well as a low friction shaft and thrust bearings for longer life and smaller actuators.
Kele Description
12IN,FLG SEGMENTED BALL,SS,CV 3410,NO,120 VAC,2 POS,13000LB-IN,NEMA 4,HTR
Manufacturer
Bray
BVMS Series Technical Brochure-ANSI 150
