BV75-CS3-54/D24-140 | Bray | Control Valves

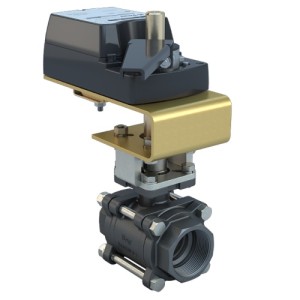

3 piece design threaded ball Valve, Carbon Steel Body, Stainless Steel ball and stem, 3/4 inch CV 54, Pressure rating 1, 000 PSI, bubble tight leakage, Normally Open, Damper & Valve actuator, 24 VAC/dc, 140 lb-in, on/off or floating, Non-Spring Return, Nema 2, IP42
Brand:Bray
MPN:BV75-CS3-54/D24-140
SKU:BV75-CS3-54/D24-140
List Price:
$1,054.00
Today's Price:
$548.08
Log in for customized pricingproduct specifications
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
300 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol/Steam
Valve Type
High Pressure
Enclosure Rating
IP42,NEMA 2
Cv
54 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
2-way
Size
3/4 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Floating,Two Position
product series features
- High Cycle Packing Design
- Bubble Tight Shut-Off with Zero Leakage
- 3-Piece Body Design
- Phosphate Coated Carbon Steel Bodies
- Commercial Grade & NEMA 4 Actuators
more information & related documents
Series Description
The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.
Kele Description
3/4IN,3 PIECE DESIGN THRD BALL,CS,CV 54,NO,24VAC/DC,140LB-IN,ON/OFF OR FLTG,NSR
Manufacturer
Bray
D-70-140-210-280 Submittal
