BV3-CS3-237/70-0121SVH | Bray | Control Valves

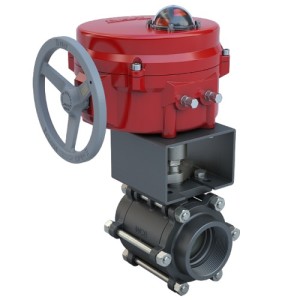

3 piece design threaded ball Valve, Carbon Steel Body, Stainless Steel ball and stem, 3 inch CV 69.27, Pressure rating 1, 000 PSI, bubble tight leakage, Normally Open, S70 Direct mounts to Bray Butterfly Valves, quarter turn electric actuator, 120 VAC, modulating, 1200 lb-in, NEMA 4, Heater, Input Signal 4-20mA, 0-10VDC, 0-5 VDC, 2-10VDC
Brand:Bray
MPN:BV3-CS3-237/70-0121SVH
SKU:BV3-CS3-237/70-0121SVH
List Price:
$15,645.00
Today's Price:
$8,135.40
Log in for customized pricingproduct specifications
Options
Heater,Manual Override Handwheel
Torque
1200 in-lb
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
300 psi
Actuator Type
Non-Fail Safe
Medium
Water/Glycol/Steam
Valve Type
High Pressure
Enclosure Rating
IP65,IP67,NEMA 4,NEMA 4X
Cv
69.27 CV
Supply Voltage (Nominal)
120 VAC
Pattern
2-way
Size
3 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Analog
product series features
- Compact Design and Direct Mounting
- High Visibility Beacon Position Indicator
- Manual Declutchable Override Handwheel
- Servo NXT Option for Modulating Control
- Available with Battery Backup on 24 VAC/DC Models
more information & related documents
Series Description
Bray’s years of proven success in quarter turn electric actuation, combined with innovative engineering, has produced the modern Series 70. The Series 70 has become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 800 to 18,000 lb.-in. (90 to 2033 NM), 24 VAC/DC and 120 VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.
Kele Description
3IN,3 PIECE DESIGN THRD BALL,CS,CV 69.27,NO,120 VAC,MOD,1200LB-IN,NEMA 4,HTR
Manufacturer
Bray
