BV1-SS3-31/DS24-180-A | Bray | Control Valves

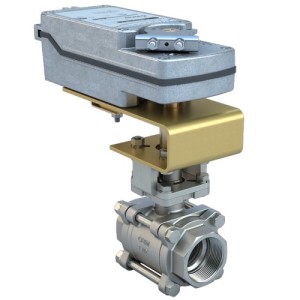

3 piece design threaded ball Valve, Stainless Steel Body, Stainless Steel ball and stem, 1 inch CV 43.89, Pressure rating 1, 000 PSI, bubble tight leakage, Normally Open, Damper & Valve actuator, 24 VAC/DC, 177 lb-in, on/off, Spring Return, Auxiliary Switch, Nema 2, IP54
Brand:Bray
MPN:BV1-SS3-31/DS24-180-A
SKU:BV1-SS3-31/DS24-180-A
List Price:
$2,287.00
Today's Price:
$1,189.24
Log in for customized pricingproduct specifications
Options
Manual Override Handwheel
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
300 psi
Actuator Type
Spring Return
Medium
Water/Glycol/Steam
Valve Type
High Pressure
Enclosure Rating
IP54,NEMA 2
Cv
43.89 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
2-way
Size
1 in
Actuator Power Type
Electric
Fail Position
Open
With Auxiliary Switch
Yes
Control Signal
Two Position
product series features
- High Cycle Packing Design
- Bubble Tight Shut-Off with Zero Leakage
- 3-Piece Body Design
- Phosphate Coated Carbon Steel Bodies
- Commercial Grade & NEMA 4 Actuators
more information & related documents
Series Description
The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.
Kele Description
1IN,3 PIECE DESIGN THRD BALL,SS,CV 43.89,NO,24VAC/DC,177LB-IN,ON/OFF,SR,SW
Manufacturer
Bray
D-70-140-210-280 Submittal
