BV1-SS3-09/DM24-210 | Bray | Control Valves

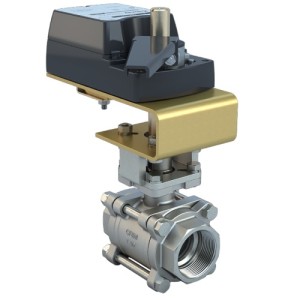

3 piece design threaded ball Valve, Stainless Steel Body, Stainless Steel ball and stem, 1 inch CV 3.75, Pressure rating 1, 000 PSI, bubble tight leakage, Normally Open, Damper & Valve actuator, 24 VAC/dc, 210 lb-in, modulating, Non-Spring Return, Nema 2, IP42, Input Signal 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA
Brand:Bray
MPN:BV1-SS3-09/DM24-210
SKU:BV1-SS3-09/DM24-210
List Price:
$2,568.00
Today's Price:
$1,335.36
Log in for customized pricingproduct specifications
Options
Manual Override Handwheel
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
300 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol/Steam
Valve Type
High Pressure
Cv
3.75 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
2-way
Size
1 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Analog
product series features
- High Cycle Packing Design
- Bubble Tight Shut-Off with Zero Leakage
- 3-Piece Body Design
- Phosphate Coated Carbon Steel Bodies
- Commercial Grade & NEMA 4 Actuators
more information & related documents
Series Description
The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.
Kele Description
1IN,3 PIECE DESIGN THRD BALL,SS,CV 3.75,NO,24VAC/DC,210LB-IN,MOD,NSR
Manufacturer
Bray
Bray Commercial BV Series Submittal
