B311

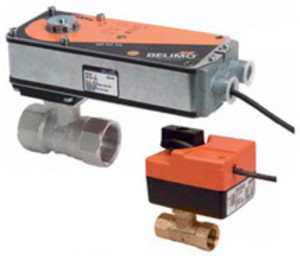

* product family image displayed

B311 | Belimo | Control Valves

3-WAY 1/2IN BVALVE CV = 1.9

Manufacturer:Belimo

MPN:B311

SKU:B311

List Price:

171.00

Today's Price:

95.76



USD
Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Size

2-way 1/2″ - 3″

3-way 1/2″ - 2″

Cv Range

2-way 0.8 to 240

3-way 0.3 to 83

Body Pattern

Two-way, three-way mixing or diverting

Flow Characteristic

Two-way equal percentage, three-way linear

Leakage Rating

0% for port A to AB; 2% maximum for port B to AB

Maximum Closeoff Pressure

1/2″-2″ 200 psig (1380 kPa)(2″ Cv 57 and under)

2″-3″ 100 psig (2″ Cv 65 and above)

Materials Of Construction

Forged brass body with nickel plating, chrome plated (or stainless steel) ball, PTFE Teflon® seals, Tefzel® characterized disc, EPDM o-rings

Media Compatibility

Hot or chilled water, <60% glycol

Media Temperature Range

0° to 250℉ (-18° to 120℃)

Compatible Actuators

Non-spring return TR, LRB, NRB, ARB; spring return TF, LF, AF

Pressure Drop

Maximum differential pressure 30 psid (207 kPa), higher could cause noise and/or damage

Pressure Rating

Two-way

1/2" to 1-1/4" 600 psig (4135 kPa)

1-1/4" (B231) to 3" 400 psig (2758 kPa)

Three-way

1/2" to 1" 600 psig (4135 kPa)

1-1/4" to 2" 400 psig (2758 kPa)

Approvals

CSA, CE

Warranty

5 years

product family features

  • Equal percentage characteristic (2-way)
  • Large Cv range from 0.8 to 170
  • Assembled, ready for installation
  • Spring return or non-spring return actuators
  • Floating, two-position, or proportional control

more information & related documents

Family Description

The B2 Series 2-way ball valves and B3 Series 3-way ball valves are used for two-position, floating or proportional control of HVAC hot or chilled water. Perfect for HVAC applications and Building Automation Systems, BAS, each two-way ball valve and three ball-valve comes assembled with direct coupled Belimo electric actuators with spring return or non-spring return operation.

Kele Description

3-WAY 1/2IN BVALVE CV = 1.9

Manufacturer

Belimo
