B238+AFRB24-SR | Belimo | Control Valves

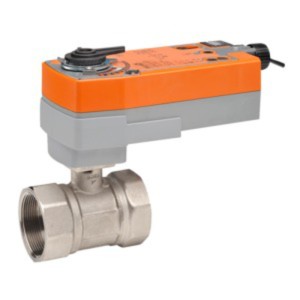

CCV, 1.5", 2 Way, 19 Cv, w/ Spring Return, 24V, Modulating

Manufacturer:Belimo

MPN:B238+AFRB24-SR

SKU:B238+AFRB24-SR

List Price:

$984.00

Today's Price:

$551.04



USD
Availability: Usually Ships in Less Than 12 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Actuator Series

AFRB(X)

Agency Listings

cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC

Ambient Temperature Range

-22°F to 122°F [-30°C to 50°C]

Angle of Rotation

90°

Application Type

Water

Ball

stainless steel

Body

forged brass, nickel plated

Body Pressure Rating (psi)

400

Characterized Disc

TEFZEL®

Close-Off Pressure

200 psi

Control

Modulating

Control Type

Modulating

Controllable Flow Range

75°

Cv

19

Description

CCV, 1.5", 2 Way, 19 Cv, w/ Spring Return, 24V, Modulating

Direction of Rotation (Fail-Safe)

reversible with CW/CCW mounting

Direction of Rotation (Motor)

reversible with switch

Electrical Connection

3 ft [1 m], 18 GA appliance cable with 1/2" conduit connector

End Fitting

NPT female ends

Fail-Safe

Spring Return

Feedback Output U

2 to 10 VDC, 0.5 mA max

Fitting Actuator

AFRB24-SR

Fitting Valve

B238

Flow Characteristic

equal percentage

Flow Characteristic Type

equal percentage

Flow Pattern

2-Way

Housing

NEMA 2, IP54, UL enclosure type 2

Input Impedance

100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA

Leakage

0% for A to AB

Manual Override

5 mm hex crank (3/16" Allen), supplied

Media Temperature Range (Water)

0°F to 250°F [-18°C to 120°C]

Noise Level (Motor)

<45 dB (A)

Position Indication

visual indicator, 0° to 95° (0° is full spring return position)

Power Consumption Holding

3 W

Power Consumption Running

5.5 W

Power Supply

24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%

Power Supply Type

24V

Product family

Characterized Control Valve

Quality Standard

ISO 9001

Running Time

95 seconds

Running Time (Fail-Safe)

<20 sec

Running Time (Motor)

95 sec

Seat

Teflon® PTFE

Seat O-ring

EPDM (lubricated)

Service

chilled, hot water, up to 60% glycol

Servicing

maintenance free

Size (mm)

1.5" [40]

Stem

stainless steel

Storage Temperature Range

-40°F to 176°F [-40°C to 80°C]

Transformer Sizing

8.5 VA (class 2 power source)

Unit of Measure

PC

Valve Trim

Stainless steel

product family features

  • Equal percentage characteristic (2-way)
  • Large Cv range from 0.8 to 170
  • Assembled, ready for installation
  • Spring return or non-spring return actuators
  • Floating, two-position, or proportional control

more information & related documents

Family Description

The B2 Series 2-way ball valves and B3 Series 3-way ball valves are used for two-position, floating or proportional control of HVAC hot or chilled water. Perfect for HVAC applications and Building Automation Systems, BAS, each two-way and three-way ball valve comes assembled with direct-coupled Belimo electric actuators with spring return or non-spring return operation.
