B213B+LF24-3 US | Belimo | Control Valves

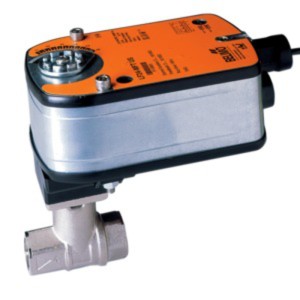

Ball Valve, 2-Way, 1/2 in, Equal Percentage Flow, Female NPT Threaded Connection, 4.7 CV, 200 psi Close-Off Pressure, Chrome Plated Brass Trim, Electric Actuator,24 V, Spring Return, Fail Normally Closed, On/Off, Floating, 35 in-lb Torque, includes 3 ft of 18 GA Appliance Cable with 1/2 in NPT Conduit Connection
Brand:Belimo
MPN:B213B+LF24-3 US
SKU:B213B/LF24-3-NC
List Price:
$727.00
Today's Price:
$378.04
Log in for customized pricingproduct specifications
Controllable Flow Range
75°
Power Supply
24 VAC,24 VDC
Torque
35 in-lb
Type
Assembly
Connection
FNPT
Input Impedance
1000 Ω (0.6 W)
Position Indication
visual indicator, 0° to 95° (0° is full spring return position)
Leakage
0% for A to AB
Quality Standard
ISO 9001
Seat
Teflon® PTFE
Power Supply Type
24V
Servicing
maintenance free
Power Consumption Running
2.5 W
Power Consumption Holding
1 W
Running Time
150 seconds
Stem
nickel plated brass
Unit of Measure
PC
Service
chilled, hot water, up to 60% glycol
Transformer Sizing
5 VA (class 2 power source)
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Actuator Series
LF
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Application Type
Water
Angle of Rotation
90°
Agency Listings
cULus acc. To UL 873 and CAN/CSA C22.2 No. 24-93
Ball
chrome plated brass
Body
forged brass, nickel plated
Characterized Disc
TEFZEL®
Cv
4.7 CV
Electrical Connection
3 ft [1 m], 18 GA appliance cable with 1/2 in conduit connector
Fitting Valve
B213B
Flow Characteristic Type
Equal Percentage
End Fitting
NPT female ends
Fitting Actuator
LF24-3 US
Fail-Safe
Spring Return
Feedback Output U
No Feedback
Supply Voltage (Nominal)
24 VAC
Trim Material
Brass
Pattern
2-way
Size
1/2 in
Control Signal
Two Position,Floating
product series specifications
Size: 1/2" - 3"
CV Range: 0.8 to 240 (2-way), 0.3 to 83 (3-way)
Body Pattern: Two-way, three-way mixing or diverting
Flow Characteristic: Two-way equal percentage, three-way linear
Leakage Rating: 0% for port A to AB; 2% maximum for port B to AB
Maximum Closeoff Pressure: 200 psi (1/2"-2"), 100 psi (2"- 3")
Materials Of Construction: Forged brass body with nickel plating, chrome plated (or stainless steel) ball, PTFE Teflon® seals, Tefzel® characterized disc, EPDM o-rings
Media Compatibility: Hot or chilled water, <60% glycol
Media Temperature Range: 0° to 250°F (-18° to 120°C)
Compatible Actuators: Non-spring return TR, LRB, NRB, ARB; spring return TF, LF, AF
Pressure Drop: Maximum differential pressure 30 psi
Pressure Rating: 600 psi (1/2" to 1-1/4"), 400 psi (1-1/4" to 3") for two-way; 600 psi (1/2" to 1"), 400 psi (1-1/4" to 2") for three-way
Approvals: CSA, CE
Warranty: 5 years
product series features
- Equal percentage characteristic (2-way)
- Large Cv range from 0.8 to 170
- Assembled, ready for installation
- Spring return or non-spring return actuators
- Floating, two-position, or proportional control
more information & related documents
Series Description
The B2 Series 2-way ball valves and B3 Series 3-way ball valves are used for two-position, floating or proportional control of HVAC hot or chilled water. Perfect for HVAC applications and Building Automation Systems, BAS, each two-way and three-way ball valve comes assembled with direct-coupled Belimo electric actuators with spring return or non-spring return operation.
Kele Description
BALL VALVE ASMBLY, 2-WAY, 1/2 IN, (F)NPT, 4.7 CV, 24V, SR, ON/OFF, FLOATING
Manufacturer
Belimo
Related Documents
WAF-4_installation_instructions
