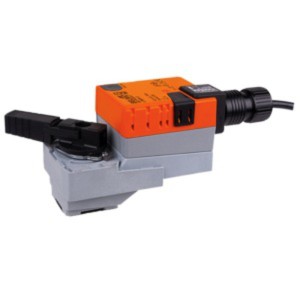

ARX24-MFT | Belimo | Control Valves

Valve Actuator, Non-Spring, 24V, MFT




List Price:


Today's Price:


Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Actuator Series


Agency Listings

cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC

Ambient Temperature Range

-22 to 122 °F (-30 to 50 °C)

Angle of Rotation


Application Type


Electrical Connection

18 GA plenum rated cable with 1/2 in conduit connector protected NEMA 2 (IP54) 3ft 1m 10 ft 3m and 16 ft 5m


Non-Spring Return

Feedback Output U

2 to 10 VDC, 0.5 mA max, VDC variable


NEMA 2, IP42, UL Enclosure Type 2

Input Impedance

100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA, 1500 Ω for PWM, floating point and On/Off

Manual Override

External Push Button

Position Indication

integrated into handle

Power Consumption Holding

1.3 W

Power Consumption Running

3.5 W

Power Supply

24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%

Power Supply Type


Quality Standard

ISO 9001

Running Time

150 seconds


maintenance free

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)


180 in-lb

Transformer Sizing

6 VA (class 2 power source)


Actuator Only

Unit of Measure



2-way or 3-way


1-1/4 to 2 in

Control Signal


Supply Voltage (Nominal)

24 VAC

product series specifications

  • Size: 1/2" - 3"
  • Cv Range: 0.8 to 240 (2-way), 0.3 to 83 (3-way)
  • Body Pattern: Two-way, three-way mixing or diverting
  • Flow Characteristic: Two-way equal percentage, three-way linear
  • Leakage Rating: 0% for port A to AB; 2% maximum for port B to AB
  • Maximum Closeoff Pressure: 200 psi (1/2"-2"), 100 psi (2"- 3")
  • Materials Of Construction: Forged brass body with nickel plating, chrome plated (or stainless steel) ball, PTFE Teflon® seals, Tefzel® characterized disc, EPDM o-rings
  • Media Compatibility: Hot or chilled water, <60% glycol
  • Media Temperature Range: 0° to 250°C (-18° to 120°C)
  • Compatible Actuators: Non-spring return TR, LRB, NRB, ARB; spring return TF, LF, AF
  • Pressure Drop: Maximum differential pressure 30 psi
  • Pressure Rating: 600 psi (1/2" to 1-1/4"), 400 psi (1-1/4" to 3") for two-way; 600 psi (1/2" to 1"), 400 psi (1-1/4" to 2") for three-way
  • Approvals: CSA, CE
  • Warranty: 5 years

product series features

  • Equal percentage characteristic (2-way)
  • Large Cv range from 0.8 to 170
  • Assembled, ready for installation
  • Spring return or non-spring return actuators
  • Floating, two-position, or proportional control

more information & related documents

Series Description

The B2 Series 2-way ball valves and B3 Series 3-way ball valves are used for two-position, floating or proportional control of HVAC hot or chilled water. Perfect for HVAC applications and Building Automation Systems, BAS, each two-way and three-way ball valve comes assembled with direct-coupled Belimo electric actuators with spring return or non-spring return operation.

Kele Description
