316233 | ASCO | Control Valves

Name: 316233
Brand: ASCO
SKU: 316233
Price: 240 USD
Availability: InStock

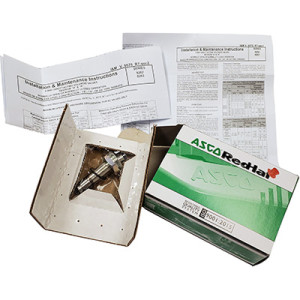

ASCO REBUILD KIT

Brand:ASCO

MPN:316233

SKU:316233

List Price:

$461.54

Today's Price:

$240.00

product datasheet

product specifications

Accessory Type

Rebuild Kit

product series specifications

Valve Function: Combustion Fuel Gas, Safety Shutoff, Vent Valve

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Aluminum

Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 Inch

Valve Media: Fuel Gas

product series features

For on-off control or venting of fuel gas in commercial and industrial gas burners
Two-way normally closed gas shutoff valves in pipe sizes 3/8" to 3"
Two-way normally open gas vent vales in pipe sizes 3/8" to 2-1/2"
Unique double-disc design with overtravel provides redundant sealing for leak-tight shutoff in closed position
Available with visual indication of open/shut position and 1-amp SPST proof of closure switch options (Required for FM safety gas shutoff valve approval)
Aluminum body, NBR seals and disc, 305 stainless steel core tube
Valves provided with 1/8" NPT downstream pipe tap with plug for routine testing
General purpose or watertight enclosures
UL, CSA, FM approvals

more information & related documents

Series Description

Two-way direct acting gas shutoff or vent solenoid valves. Sizes 3/8" to 3", normally open or normally closed operation. For fuel gas in commercial and industrial gas burners. UL, CSA, FM approved general purpose or safety shutoff valves.

Kele Description

ASCO REBUILD KIT

Manufacturer

ASCO
