95DISP-1 | Fireye | Combustion Control & Flame Safety

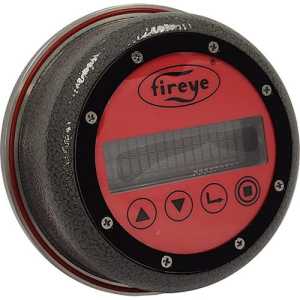

Vacuum fluorescent display (VFD) for the Insight II scanner: 2-line by 16-character alpha-numeric with five-pushbutton keypad.
Brand:Fireye
MPN:95DISP-1
SKU:95DISP-1
List Price:
$3,512.00
Today's Price:
$1,640.00
Log in for customized pricingproduct specifications
Used With
Fireye Insight II Flame Scanner
product series specifications
MECHANICAL:
Housing Material:
Mounting: Requires one threaded mounting flange, ordered separately (see below). For fiber optic mount, refer to bulletin CU-117
Cooling / Purge Air Requirements:
Source: Clean, dry, cool
Volume: 4 SCFM (113 l/min) at 3/8” threaded mounting flange, or 1 inch “Y” fitting, mounted on scanner sight pipe. Temperature near the upper limit of the scanner operating range and/or use with dirty/dusty fuels may require up to 15 SCFM (425 l/min). Pressure: Adequate to overcome furnace or windbox pressure
Pressure: Adequate to overcome furnace or windbox pressure
Operating Temperature Rating: -40°F to + 150°F (-40°C to +65°C), ambient; -40°F to 176°F (-40°C to 80°C), scanner internal temperature
Storage Temperature Rating: -40°F to + 185°F (-40°C to +85°C)
Humidity: 0% to 95% relative humidity, non-condensing
ELECTRICAL:
Input Power: 24 Vdc, +10%, -15% supply current: 0.35 A, 8.5 VA, Hold Time must be 20 msec Min. Fireye power supply 60-2685 is recommended
Relay Output: 2 FLAME RELAYS, SPDT (N.O. and N.C.) ; FAULT RELAY, SPST (N.O.)
product series features
- Combination infrared and ultraviolet sensors in one device
- Two flame relays, fault relay, two 4-20 mA outputs standard
- Works with intrinsically safe wireless handheld commissioning tool
more information & related documents
Series Description
Insight II integrated flame scanner uses both solid state infrared and ultraviolet sensors in a single device. The scanner's advanced sensors and algorithms accurately discriminate its target burner from adjacent flames in the same combustion chamber. The Type 95DSS3 scanner has two internal flame relays with adjustable On/Off thresholds, and two 4-20 mA analog outputs, eliminating the need for a remote flame amplifier. The Insight II scanner is the first Primary Safety Control to be UL-certified to Safety Integrity Level 3 (SIL3). If the target flame goes out, the scanner sends a signal to burner management system to close the fuel valve, preventing unburned fuel from entering the boiler, and eliminating the potential for explosion.
Kele Description
VACUUM FLUORESCENT DISPLAY (VFD) FOR INSIGHT II FLAME SCANNER.
Manufacturer
Fireye
Fireye Insight II 95DSS3 Display Specifications and User Manual
