TWS-F3-A | EE Controls | Alarms & Indication
110VAC CONTINUOUS RED IC LIGHT
Brand:EE Controls
MPN:TWS-F3-A
SKU:TWS-F3-A
List Price:
$82.61
Today's Price:
$42.96
product specifications
Mount
Wall/Surface Mount
Supply Voltage
110 VAC
Type
Indicator Light
Display
LED
product series specifications
- Supply Voltage:
- 24 VAC/VDC, 110 VAC
- Power :
- Light module :
- 5W 24-120 VAC/VDC
- Horn module :
- 24V-6 mA, 110V-4 mA
- Color:
- Blue, Amber, Red, Green, Yellow, Clear
- Flash Rate:
- Flashes per minute (FPM)
- Incandescent LED:
- 110 FPM ±20 FPM
- Strobe:
- 65 FPM ±10 FPM(24 VAC/DC)
- :
- 90 FPM ±20 FPM (110/240 VAC)
- Horn Loudness:
- Medium, 76-86 dB @ 1 meter
- Mounting:
- 2.13‚Ä= (5.4 cm) centers
- Wall:
- Two holes
- Surface:
- Four holes
- Operating Temperature:
- -22° to 140°F (-30° to 60°C)
- Strobe:
- 14° to 122°F (-10° to 50°C)
- Enclosure Rating:
- NEMA 4, IP65, Horn derates to IP20
- Horn:
- NEMA 1, IP20 upward mount
- :
- NEMA 1, IP24 downward mount
- Dimensions:
- Base:
- 2.68"H x 2.95" dia (6.8 x 7.5 cm)
- Light:
- 2.72"H x 2.95" dia (6.9 x 7.5 cm)
- Horn:
- 3.11"H x 2.95" dia (7.9 x 7.5 cm)
- Approvals:
- CE, UL FIle #E194312
- Warranty:
- 1 year
product series features
- Up to 6 colors available
- Horn module available
- Each lamp individually initiated
- 24 AC/DC or 110VAC voltages
- IP65 (IP20 for Horn)
- 4 mounting styles
- 5 modules per stack (10 with Double Stack)
more information & related documents
Series Description

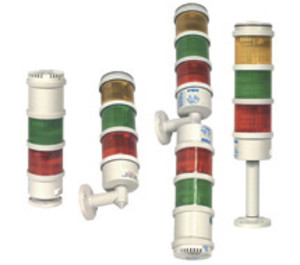

The TWS Series tower lights allow the installer to stack up to five different emergency signaling devices in a single location. Each emergency signal device has its own set of contacts. The flexibility of the tower lights make them indispensable in the building automation systems, BAS, environment. Starting with a bottom module, up to five devices can be added in any combination of continuous and flashing incandescent lights, continuous and flashing LED lights, and Xenon strobes. Each stack can be capped with a horn. Each light comes in a variety of colors, and all lamps are replaceable. Several wall- and pedestal-mounting configurations are available.
Kele Description
110VAC CONTINUOUS RED IC LIGHT
Manufacturer
EE Controls
