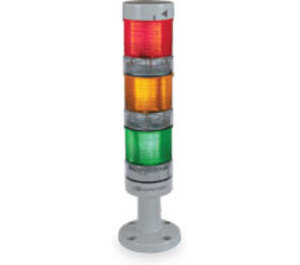

50P3MCDGDADRDS3 | C3 CONTROLS | Alarms & Indication
50MM, PRE-ASSEM, 24V AC/DC, DIR-MOUNT, CONT. GRN, CONT. AMB, CONT. RED, CONT. 85/100DB SOUND MOD
Brand:C3 CONTROLS
MPN:50P3MCDGDADRDS3
SKU:50P3MCDGDADRDS3
List Price:
$708.00
Today's Price:
$368.16
Log in for customized pricingproduct specifications
Type
Indicator Light
Supply Voltage (Nominal)
24 VAC
Mount
Direct-Mount Base
product series specifications
Operating Temperature: -22°F to 140°F (-30°C to 60°C)
Storage Temperature: -22°F to 158°F (-30°C to 70°C)
Module Type:
Light Module
Continuous Type Rated Volts: 24V AC/DC or 120V AC or 240V AC
Flashing Type Rated Volts: 24V AC/DC or 120V AC or 240V AC
Rotary Type Rated Volts: 24V AC/DC or 120V AC or 240V AC
Colors: Amber, blue, green, red or white
Enclosure Rating: Type 1, 2, 3, 3R, 4/4X, 12 and 13, IP65 (as per IEC 60529)
Wire Size: 0.3255-1.2 mm² (AWG 22-16)
Copper only - stranded
Only one wire permitted per termination
Recommended Torque: 0.5 - 0.9 Nm (5 - 8 lb in)
Design Life (Hours): 100,000
Lamp Type: LED
Shock & Vibration: Excellent
Approvals: CE, UL file
Warranty: Lifetime
product series features
- Stackable design to allow up to five modules in a single assembly
- Heavy duty polycarbonate construction for excellent durability, impact resistance, superior corrosion resistance, moisture rejection and electrical insulation
- Easy maintenance and assembly
- Continuous, flashing and rotary integrated LED light modules available, low power consumption for energy savings
- Available continuous or intermittent sound modules with 80dB or 100dB output
- Mounts to panel utilizing a four hole mounting pattern(38mm (1-1 1/2 in.)
- Rated Type 1, 2, 3, 3R, 4/4X, 12 and 13, and IP65 for ingress protection
more information & related documents
Series Description
The c3controls World Tower Lights, WTL Series with super bright integrated LEDs are a reliable source for all your signaling needs. Available in 24V AC/DC, 120V AC, and 240V AC. Five color lenses and LEDs are available with three styles of module illumination; continuous, flashing, and rotary. All c3controls 50mm diameter Tower Lights are UL Listed and are rated Type 4/4X as standard for warranty and corrosion resistance. In addition, tower light assemblies are also listed for Type 1, 2, 3, 3R, 12 and 13, and IP65 for ingress protection. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
TLIGHT 50MM PRE 24V DIRECT CON GRN AMB RED 85/+DB
Manufacturer
C3 CONTROLS
