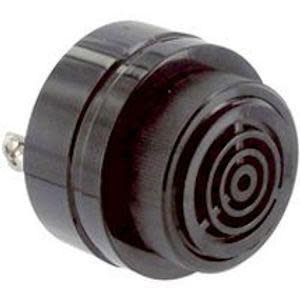

Small round black buzzer with concentric circles on front and rear electrical pin.

SC110 | Mallory | Alarms & Indication

Transducer, Piezo, Alarm, Continuous, 30 V, 120 V, 19 mA, 80 dba

Brand:Mallory

MPN:SC110

SKU:SC110

List Price:

$119.00

Today's Price:

$61.88

product datasheet

catalog page

product specifications

Type

Display Panel

Enclosure Rating

NEMA 1

Supply Voltage (Nominal)

120 VAC

product series specifications

Supply Voltage:

SC110: 30-120 VAC/VDC, 6-21 mA

SC628: 6-28 VDC, 3-18 mA

SC628A: 6-28 VAC/VDC, 6-23 mA

SC628AN: 6-28 VAC/VDC, 4-30mA

Horn Loudness: Medium, 68-80 dB @ 2' (60.96cm)

AN model Loudness: 80-95 dB @ 2' (60.96cm)

Tone: Continuous

Mounting: Panel or Plate .125" or thicker

Panel Cutout: Panel, cutout 1.13" (2.87 cm)

Wiring: Screws or 1/4" Quick Connect

Weight: 0.1 lb (0.05 Kg)

Approvals: UL recognized component File# S1290

Warranty: 1 year

more information & related documents

Series Description

In the Building Automation System environment, an alarm horn can indicate that immediate attention is required. The SC Series alarm horns provide an audible tone when an electric signal is applied. Integrated with a sensor and transmitter, these are ideal for warning people about smoke, gas and other environmental hazards. They also can be integrated into a security system.

Kele Description

115VAC SONALERT LOUDNESS-MED.

Manufacturer

Mallory
