EDVPGU1

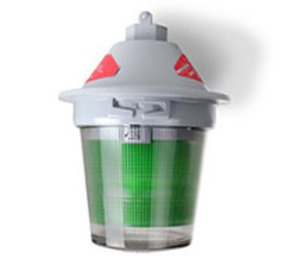

* product series image displayed

EDVPGU1 | Edwards Signaling | Alarms & Indication

DOME GUARD FOR 107XBR SERIES BEACON

Brand:Edwards Signaling

MPN:EDVPGU1

SKU:EDVPGU1

List Price:

$234.47

Today's Price:

$121.92



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Accessory

product series specifications

    Supply Voltage:
    107XBRxMx24D:
  • 24 VDC, 220 mA
    107XBRxMx120A:
  • 120 VAC, 60Hz, 115mA
    Color:
  • Amber, Blue, Green, Red, Clear
    Flash Mode:
  • Steady on or flashing (65 FPM) field configurable by wiring
    Project LED Life:
  • 148,000 hours
    Mounting :
  • Bracket mount, pendant mount, ceiling mount
    Operating Temperature:
  • See Table on next page
    Enclosure Rating:
  • NEMA 3R and NEMA 4
    Dimensions:
  • 7‚Ä= X 10.13‚Ä= (178 x 260 mm)
    Weight:
    107XBRBMx:
  • 10.87 lb (4.93 kg)
    107XBRCMx:
  • 9.87 lb (4.47 kg)
    107XBRPMx:
  • 8.97 lb (4.06 kg)
    Approvals:
  • UL Listed
    Warranty:
  • 1.5 years

product series features

  • Available in 24VDC or 120VAC
  • Five lens colors
  • Steady-on or flashing in every unit
  • 3/4 in. NPT threaded conduit
  • High level of immunity to shock and vibration
  • Three mounting options: pendant, bracket or ceiling
  • UL Listed for Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F and G and Class III, Division 1 locations
  • UL and cUL Listed for Marine environments (120VAC only)

more information & related documents

Series Description

The Edwards Signaling 107XBR Series hazardous location XTRA-BRITE™ LED visual signals are NEMA Type 3R and Type 4 heavy-duty visual signals designed for indoor or outdoor applications. The units are available in 24 VDC or 120 VAC and are field configurable for steady-on or flashing (65 fpm). The inner, double fresnel lens is made of a high grade polycarbonate and is designed to magnify the super-bright LEDs inside. A clear, outer, impact-resistant glass globe also covers the lens and an optional dome guard fits over the glass dome to protect it against accidental impacts with machinery or falling objects. The 107XBR has three different mounting configurations including the pendant mount, bracket mount and ceiling mount and can be mounted on 3/4 in. NPT threaded conduit. The 107XBR is designed for applications such as petroleum refineries, utility gas plants, dry cleaning plants, fuel servicing areas and other similar applications.

Kele Description

DOME GUARD FOR 107XBR SERIES BEACON

Manufacturer

Edwards Signaling
