125XBRMB24DB | Edwards Signaling | Alarms & Indication

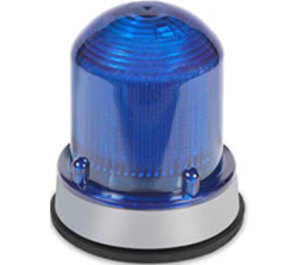

LED ON-FLASH BEACONS BLUE 24VDC BLACK BASE

Manufacturer:Edwards Signaling

MPN:125XBRMB24DB

SKU:125XBRMB24DB

list price:

745.23

372.62

(login for better pricing)

availability:Usually Ships in Less Than 5 Business Days

add to cart

view catalog page

product family specifications

Supply Voltage

125XBRxx24Dx

24 VDC, 0.215A

125BRxx120Ax

120 VAC,50/60Hz, 0.108A

Wiring

18″ (45cm) 4-Wire Pigtail

Color

Amber, Blue, Clear, Green, Red

Flash Rate

Selectable through wire connection

125XBRM

Steady-On/Flashing (65 FPM)

125XBRZ

Steady-On/Lightburst (420FPM)

Projected LED Life

148,000 hours

Mounting

On 1/2" or 3/4" NPT conduit using a 1/2" internal or 3/4" external conduit hub

Operating Temperature

-31° to 150℉ (-35° to 66℃)

Enclosure Rating

NEMA 4X

Dimensions

3.875"H3.875″H(98.4mm) X 3.25″W (82.6mm)(98.4mm) X 3.25"W (82.6mm)

Weight

0.5lbs (0.22 Kg)

Approvals

UL file E340873

Warranty

1.5 years

product family features

Available in 24 VDC or 120 VAC

Available with amber, blue, green, red or white lens

Available with gray or black base

Option for panel or conduit mounting

Available in dual mode Steady-On/Flashing LED or Steady-On/Lightburst LED versions

more information & related documents

Family Description

The Edwards Signaling 125XBR Class XBR XTRA-BRITE™ LED beacons are UL and cUL listed dual mode signaling devices, available in two versions, Steady-On/Flashing (125XBRM) and Steady-On/Lightburst (125XBRZ). Both versions feature a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The lens is made of shatter resistant polycarbonate. Both the 125XBRM and 125XBRZ beacons are dual mode devices, maximizing application flexibility while reducing inventory costs. It can also be panel-mounted using the mounting gasket provided with the unit.

Kele Description

LED ON-FLASH BEACONS BLUE 24VDC BLACK BASE

Manufacturer

Edwards Signaling

Related Documents

125XBR Series Datasheet
PDF - 125XBR Series Installation Instructions.pdf

125XBR Series Installation Instructions
