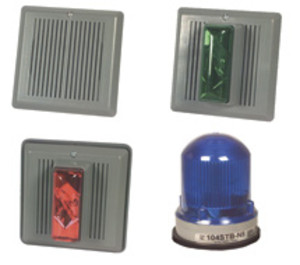

125STRHC120A | Edwards Signaling | Alarms & Indication

Supply Voltage:

-N5 (89, 869, 868): 120 VAC

-AQ (89, 869, 868): 24 VDC, 24 VAC

-120A (125STRH): 120 VAC -20% to +10

Current Rating: 125STRH: 120 mA

Horn/Strobe:

24 VDC, 22 mA/390 mA

24 VAC, 72 mA/390 mA

120 VAC, 24 mA/87 mA

Average Candela with Colored Lens: Amber: 90 cd; Blue: 20 cd; Clear: 150 cd; Green: 70 cd; Red: 21 cd

Color: Amber, Blue, Clear, Green, Red

Horn Loudness: 90 dba @ 10'

Peak Candela: 300,000 cd

Strobe Tube Life: 3,000 hrs, 1,000 hrs

Operating Temperature: 869, 869STR, 89STR: 32° to 120°F (0° to 49°C);

868, 868STR, 125STRH: -31° to 150°F (-35° to 66°C)

Operating Humidity:

89STR: 85% RH @ 86°F (30°C)

869, 869STR: 93% RH @ 90°F (32°C)

868, 868STR, 125STRH: 98% RH @ 104°F (40°C)

Mounting:

125STRH: 1/2" MNPT in center of plate

868: Weatherproof surface box supplied - no NEMA rating

869: 3" sq x 1-1/2" electrical box with 1-1/2" extension ring (need 3" depth)

89STR: Single gang box or equivalent

Enclosure Rating:

125 STRH: NEMA 4X

89STR, 869STR: Indoor, No NEMA rating

868, 868STR: Outdoor surface, NEMA rating is mounting box dependent

Dimensions:

89 STR: 5.0"H x 3.375"W (12.7 x 8.6 cm)

869 STR, 868 STR, 869, 868: 5.50"H x 5.50"W (14 x 14 cm)

125STRH: 3.875"H x 3.25"W (9.84 x 8.26 cm)

Approvals: CE, CSA, UL File #E122942 & E11459

Warranty: 2 years
